SIMAGIC P-STP Kill Switch – Instant Force Feedback Cut-Off

The SIMAGIC P-STP Kill Switch is a dedicated safety device designed for high-torque direct drive setups. It allows you to instantly cut off force feedback with a single press, protecting both the driver and the hardware in case of malfunction, software issues or heavy crashes in-game.

One-press safety control

With the P-STP Kill Switch mounted within easy reach, you can immediately stop the wheelbase from delivering force feedback.
Press the button to cancel FFB, then simply twist the button to the right to re-enable it. The green LED indicates that the system is armed and ready.

Easy installation, wide compatibility

The multi-hole mounting pattern makes it straightforward to install the Kill Switch on common aluminium profile rigs and various cockpit layouts.
The device is ready for use as soon as it is connected.

Compatible wheelbases:

• SIMAGIC Alpha Series Wheelbase

• SIMAGIC Alpha EVO Wheelbase

A compatibility update adds an additional data cable, making the P-STP Kill Switch work seamlessly with both Alpha and Alpha EVO wheelbases.

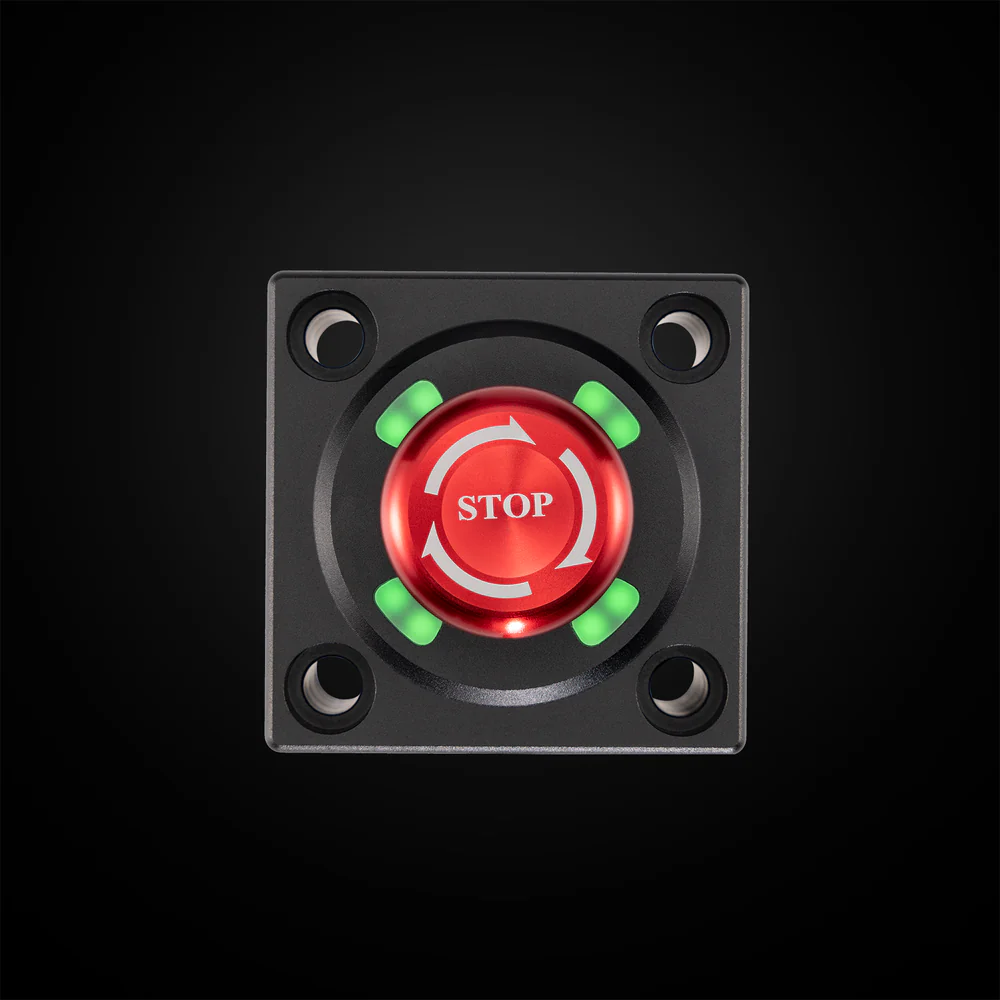

Clear status indication

• Green light on: Kill Switch is active and ready

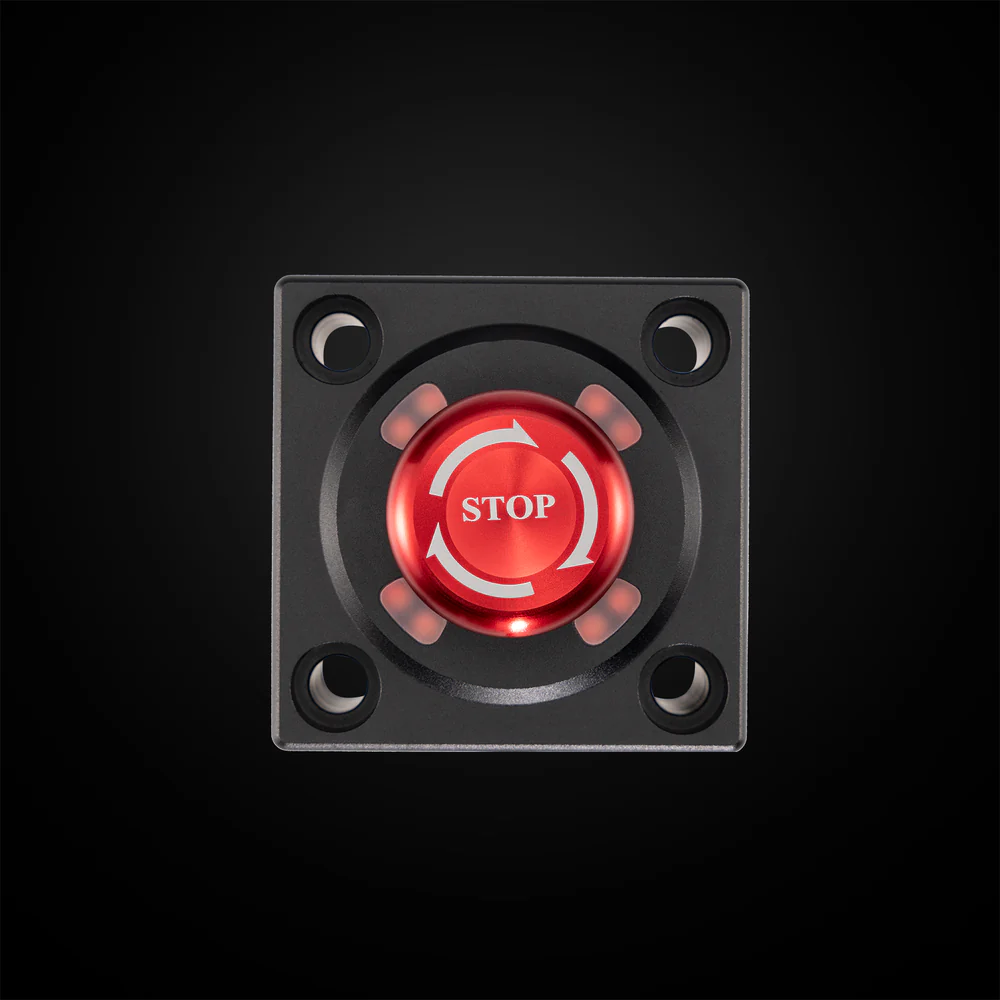

• Press button: force feedback is instantly disabled

• Twist to reset: the green light turns back on and FFB is re-enabled

The intuitive design makes it an essential part of any safe simracing setup.

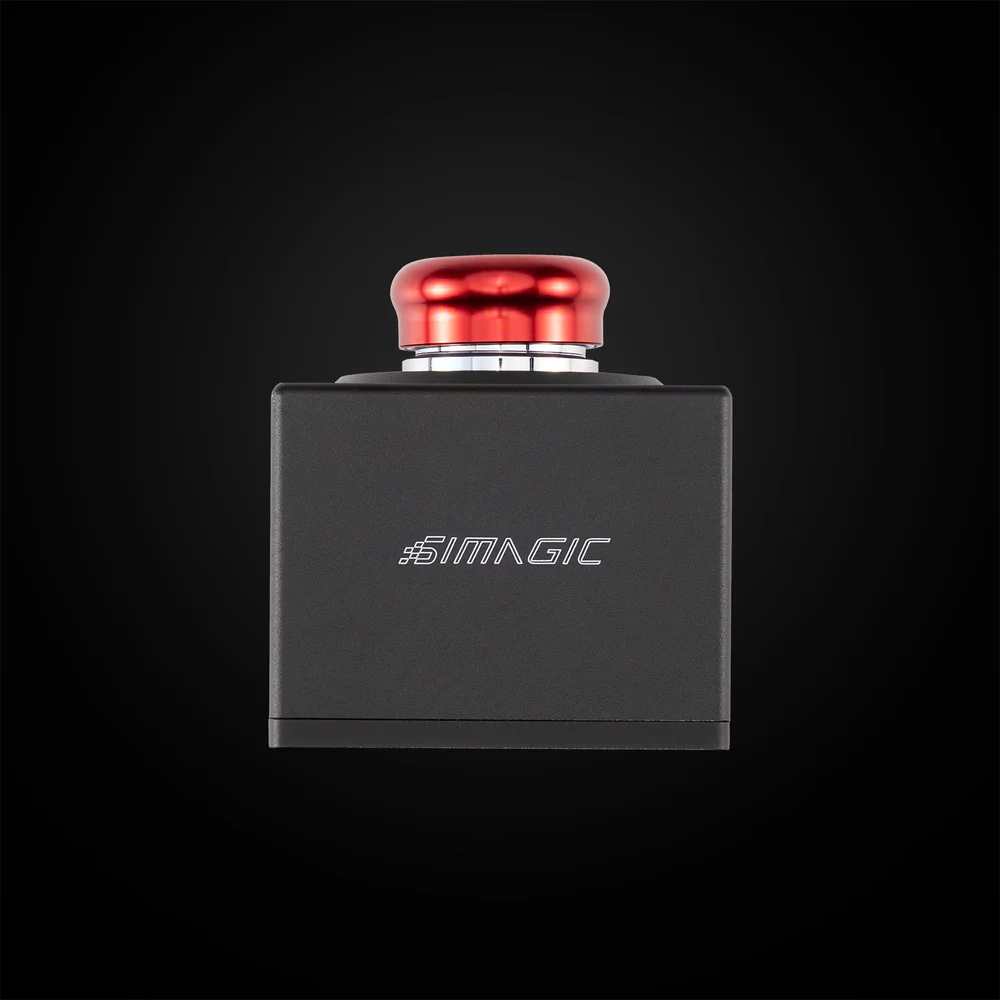

CNC-machined unibody construction

The housing is made from CNC-machined aluminum alloy, providing excellent durability and rigidity even in demanding environments. It is built to last and to maintain reliability over time.

Technical Specifications

Product name: SIMAGIC P-STP Kill Switch
Material: CNC-machined aluminum alloy
Dimensions (L × W × H): 55 × 55 × 64.5 mm
Screw hole spacing: 40 mm
Compatible wheelbases: Alpha Series Wheelbase, Alpha EVO Wheelbase

Included accessories:

• Socket head cap screw M6-45 × 6

• Allen key 5 mm × 1

• Roll-in T-nut with ball spring M6-40 × 4

• RJ11 to RJ11 data cable (for Alpha Series) 1.4 m × 1

• RJ11 to RJ45 data cable (for Alpha EVO) 1.4 m × 1
