BlackFriday Bundle ECUMASTER ADU 7 AS Display + USB to CAN Module

Black Friday Bundle – ECUMASTER ADU 7” Autosport + USB to CAN Module

7″ professional racing display in Autosport version + CAN interface

This Black Friday promotional bundle is intended for the most demanding racing teams and motorsport projects, where the priorities are:

• maximum data readability
• reliability of all connections
• durability in extreme conditions

The bundle includes:

• ECUMASTER ADU 7” – Autosport Version (Advanced Display Unit)

• ECUMASTER USB to CAN – USB–CAN interface for communication and configuration

The Autosport version uses Autosport connectors and a reinforced enclosure, making it an ideal choice for top-level cars (GT, prototypes, rally, endurance).

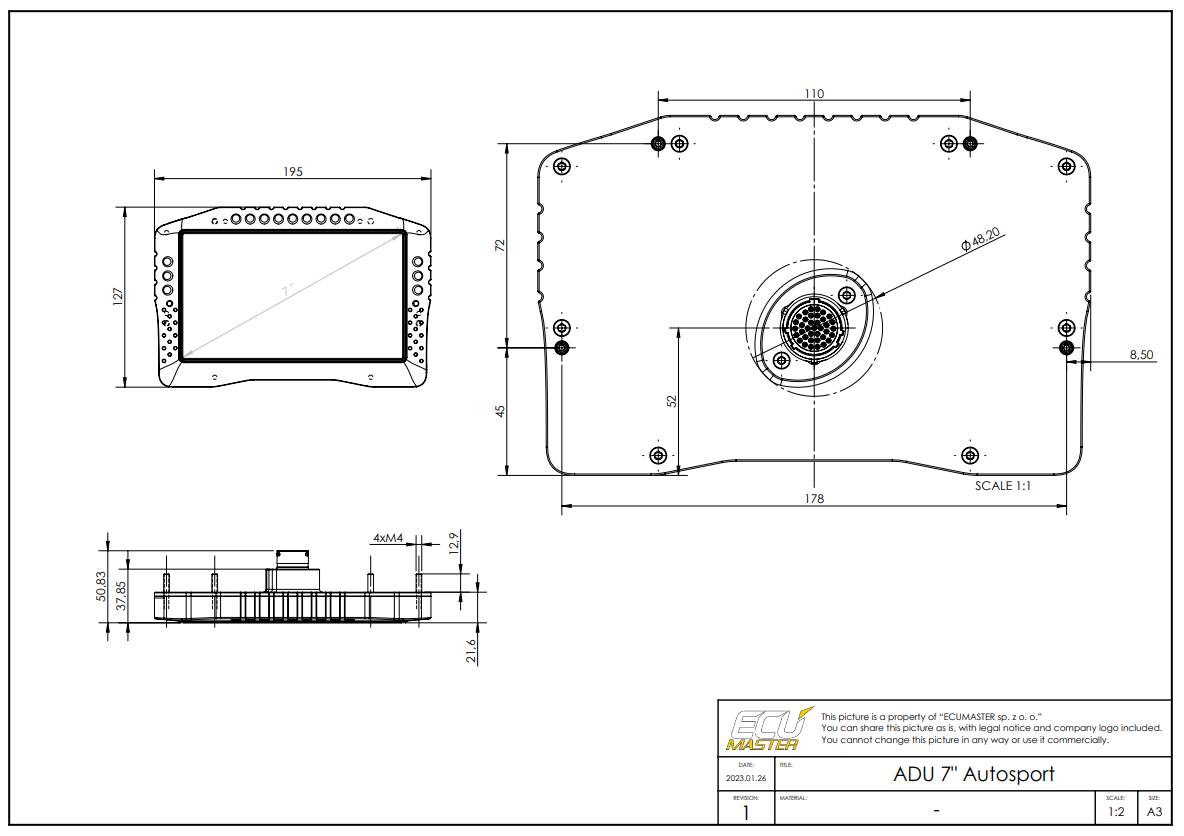

ECUMASTER ADU 7” Autosport – professional racing dash

ADU 7” is part of the ECUMASTER Racing Dash family (ADU5 / ADU7), designed as an affordable yet fully professional solution for displaying and logging data.

After consultations with racing drivers and engineers, ADU was designed to:

• display all critical information in a clear and easy-to-read way

• provide clear alarms and warnings

• allow full customisation of screen layout and logic

The Autosport version additionally offers:

• Autosport connectors – top-level quality used in professional motorsport and aviation

• increased resistance to vibration, moisture and environmental conditions

• perfect integration in factory/OEM racing and top-tier builds

Display and pages

• Display type: TFT 800 × 600

• Brightness for 7″: 1000 cd/m² – excellent readability in direct sunlight

• Anti-reflective coating

• Multiple preconfigured pages that can be customised (practice, qualifying, race, diagnostics, errors, etc.)

• Page switching manually or automatically

• Each displayed element (gauges, bar graphs, icons, texts, messages) can be edited in real time using Windows-based configuration software

Overlay system

Allows important information to be displayed regardless of the active page, for example:

• low oil pressure

• temperature warnings

• best lap

• service messages

RGB LEDs, alerts and racing functions

• 15 ultra-bright RGB LEDs:

  • configurable as shift lights (gear change)

  • or individual alarms (fuel level, oil, coolant, pressures, etc.)

• Support for lap timer with predictive lap timing,

  • using IR beacons or GPS

  • dedicated “Qualifying Mode” page with time delta to the best lap

• Support for thermal cameras for monitoring:

  • brake discs, or

  • tyres (up to 16 points per tyre)

• User-configurable timers (pit stop, countdown, etc.)

Inputs / outputs and communication

Inputs / outputs:

• 8 analogue inputs, 10-bit, 0–5 V

  • software-controlled 10 kΩ pull-up / pull-down

  • each analogue input can also be configured as a switch input

• 8 digital inputs

  • software-configurable sensitivity (VR, Hall)

  • software-configurable 4k7 pull-up resistors

  • ideal for engine speed, wheel speed, Flex Fuel, turbo speed, shaft speed

  • each digital input can be used as a switch input

• 2 low-side outputs (switch to ground, up to 2 A)

• 1 analogue output 0–5 V (10-bit)

• Monitored +5 V output for powering external sensors

Communication:

• 2 × CAN 2.0 A/B (125 / 250 / 500 / 1000 kbps) – CAN streams fully user-definable

• RS232 (Rx/Tx) – supports AiM, Ecumaster, Hondata Kpro, Autronic protocols

• USB – for logging to an external USB flash drive

• PC communication over CAN BUS (Ecumaster USBtoCAN, Peak, Kvaser)

Data logging and electronics

• Data channels can be logged to USB at up to 500 Hz

• 32-bit automotive controller combined with a modern graphics processor

• Smooth, high-resolution graphics at 50 frames per second

• Designed for harsh motorsport environments

Autosport enclosure, sensors and general parameters

• Temperature range: AECQ100 GRADE 3, -40 to +85°C

• Internal battery protection

• Operating voltage: 6–22 V, transient protection according to ISO 7637

• Enclosure: specially CNC-machined aluminium, black anodised

• Protection class: IP60 (Autosport builds commonly use the IP67 option)

• Connectors: Autosport (instead of standard AMP Automotive 35-pin)

• 3D accelerometer + 3D gyroscope for vehicle dynamics analysis

• Light sensor – automatic brightness adjustment

• Temperature sensor – device temperature monitoring

• RTC – Real Time Clock, battery powered

ECUMASTER USB to CAN – interface included in the bundle

The bundle includes the USB to CAN Module, which:

• allows configuration of the ADU 7” Autosport via CAN BUS

• is used to adjust layouts, pages, alarms and timers

• enables real-time data monitoring and downloading of logs

• works with Ecumaster software and popular CAN interfaces

Shipping restriction

Ecumaster brand products are not shipped to the USA, Canada and Mexico.
