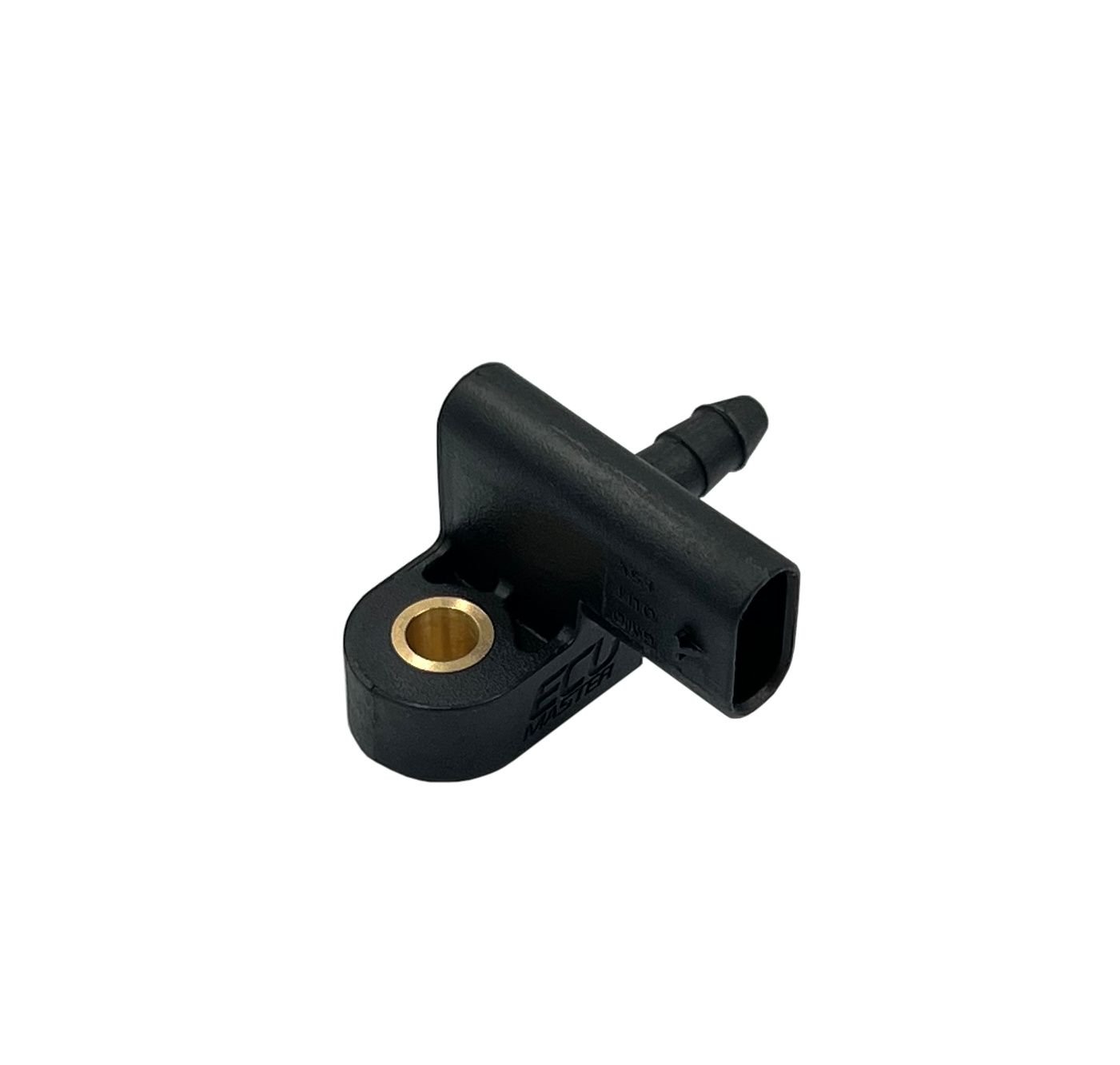

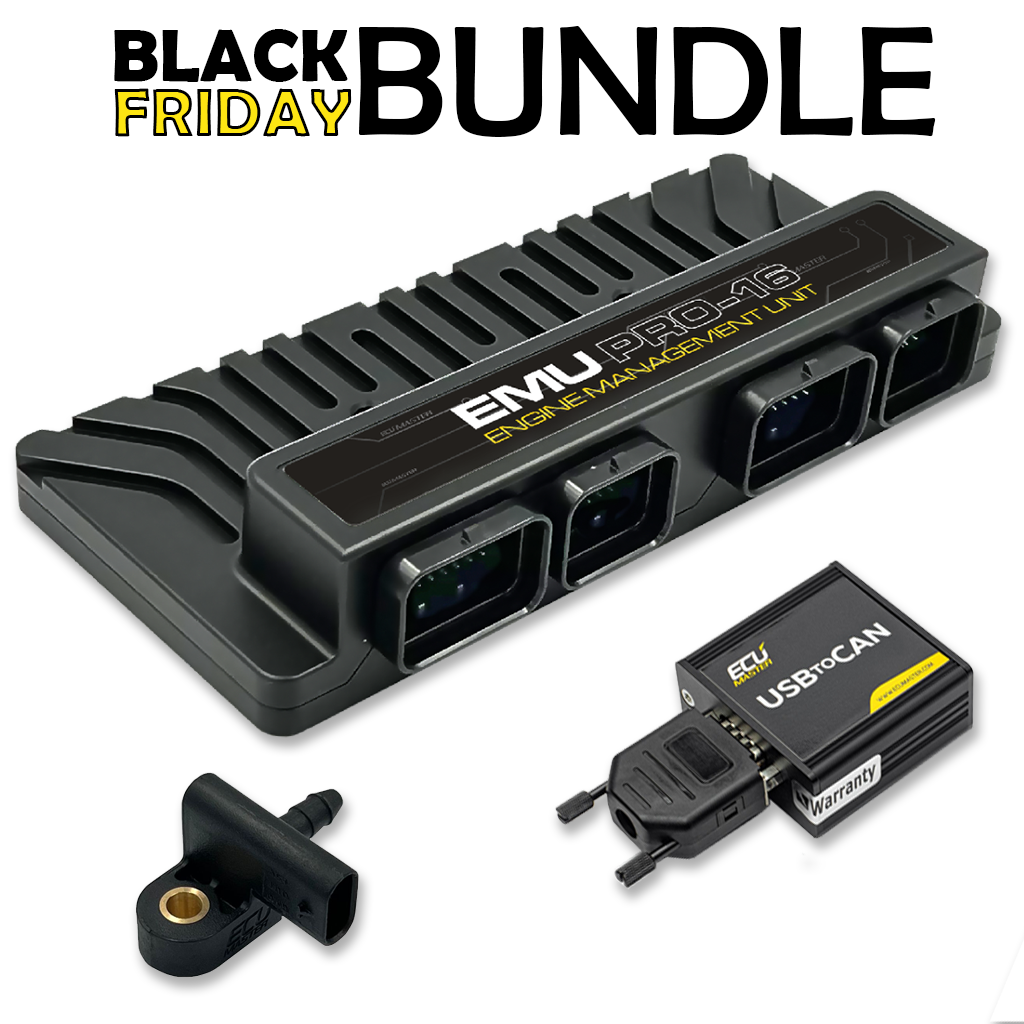

BlackFriday Bundle ECUMASTER EMU PRO-16 + Map-400 Sensor + USB to CAN Module

ECUMASTER EMU PRO-16 – Advanced Engine Management for Professional Motorsport

The ECUMASTER EMU PRO-16 is a next-generation standalone engine management system (ECU) designed for the most demanding motorsport projects. It offers extensive configuration options, extremely precise control, and a wide range of features required in professional race cars, high-boost turbo builds, multi-cylinder engines, and complex engine conversions.

The PRO-16 version is dedicated to setups that require a very high number of inputs and outputs, advanced logic, and full control over all engine-related systems.

Key Advantages of EMU PRO-16

Precise Engine Control

• Advanced fuel control model with closed-loop
  short-term and long-term fuel trim (STFT/LTFT)

• Innovative fuel dose algorithm ensuring exceptional injector control accuracy

• Stable operation in extreme track conditions and at high boost levels

Unmatched Configuration Flexibility

The EMU PRO software is designed to allow full personalization:

• fully adjustable table sizes and resolution,

• selectable channels for X and Y axes,

• editable axis values for improved resolution in non-linear areas,

• advanced user functions, custom logic, CAN inputs/outputs and CAN exports,

• functionality similar to the PMU and ADU product lines.

All this makes the EMU PRO-16 one of the most flexible ECUs in its class.

Extensive Engine and Sensor Support

Supported engines:

• four-stroke,

• two-stroke,

• rotary (Wankel) engines,

• up to 12 cylinders.

Sensor support:

• built-in support for 2 × LSU 4.9 controllers, up to 4 lambda sensors,

• full Drive-By-Wire (DBW) support for up to 2 electronic throttle bodies,

• support for up to 4 variable cam phasers (VVT) with automatic calibration,

• support for 2 knock sensors,

• 8 EGT inputs or high-precision analog inputs.

Communications and Inputs/Outputs (I/O)

The PRO-16 version offers a significantly higher number of inputs and outputs:

• Total of 46 outputs and 30 inputs

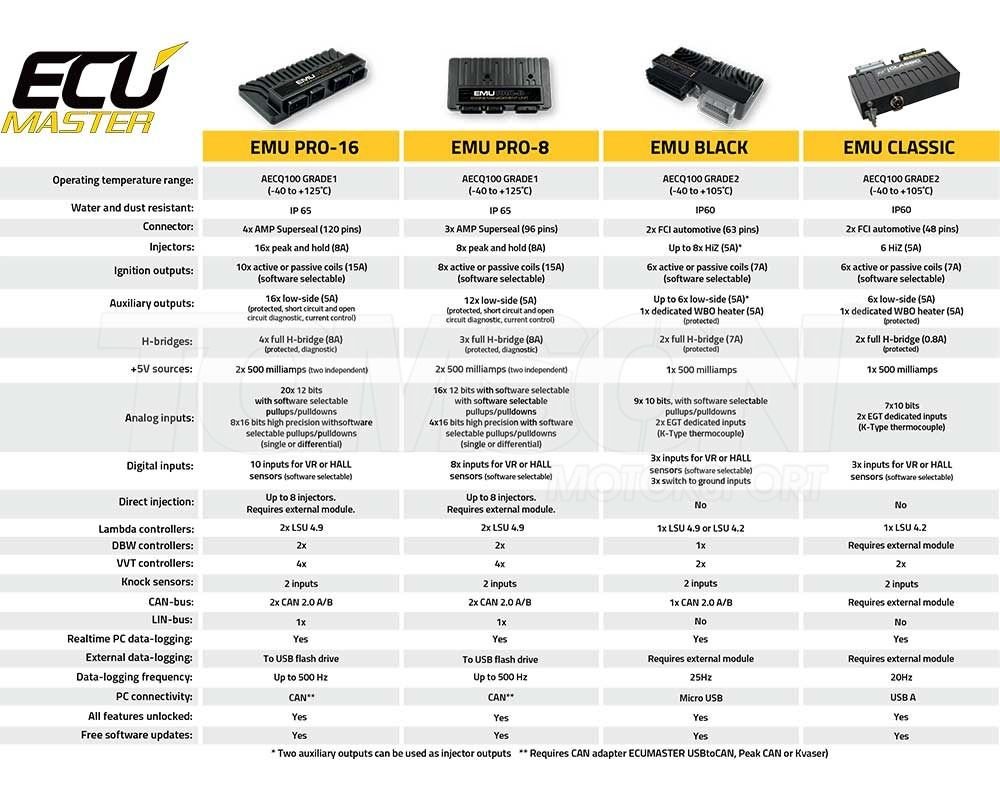

  (for comparison, the EMU PRO 8 values are shown in brackets in technical specs)

• 2 × CAN 2.0A/B

• 1 × LIN bus

This makes the EMU PRO-16 ideal for complex multi-system projects where extensive integration and advanced control logic are required.

Advanced Data Logging

• Logging to external USB memory

• Data acquisition rates up to 500 Hz

• Clear online data analysis with graph visualisation in real time

Motorsport-Ready Enclosure

• IP65-rated waterproof housing

• Reliable operation in harsh environmental conditions (high temperature, vibration, humidity)

• Designed for motorsport, drift, rally, time attack and high-boost turbo projects

Why Choose EMU PRO-16?

• Ideal for the most complex builds

• Huge number of inputs and outputs

• Fully scalable architecture

• Professional-level tuning capabilities

• Integration with ADU, PMU, CAN and other Ecumaster systems

• Motorsport-grade stability and precision

• Proven in race cars, drift cars, and prototype vehicles

Shipping Restrictions

Ecumaster brand products are not shipped to the USA, Canada and Mexico.
