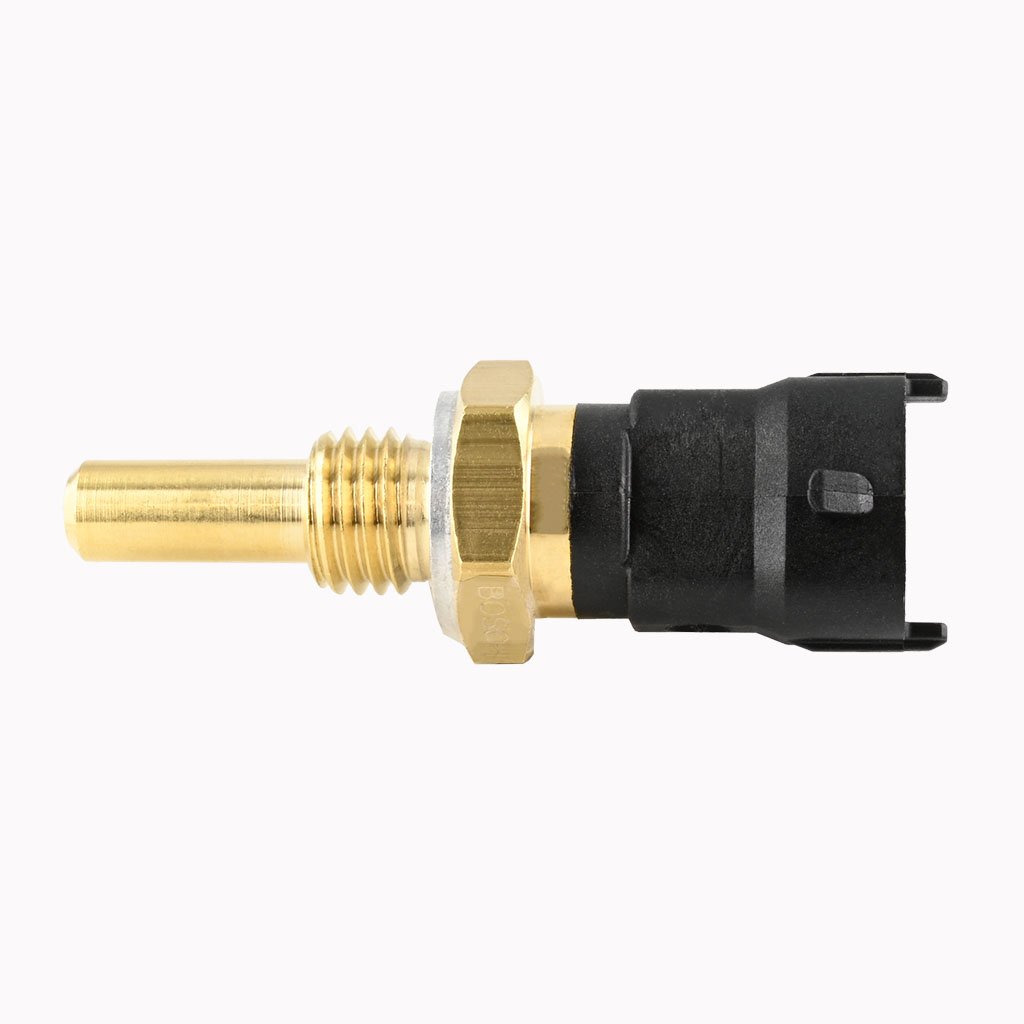

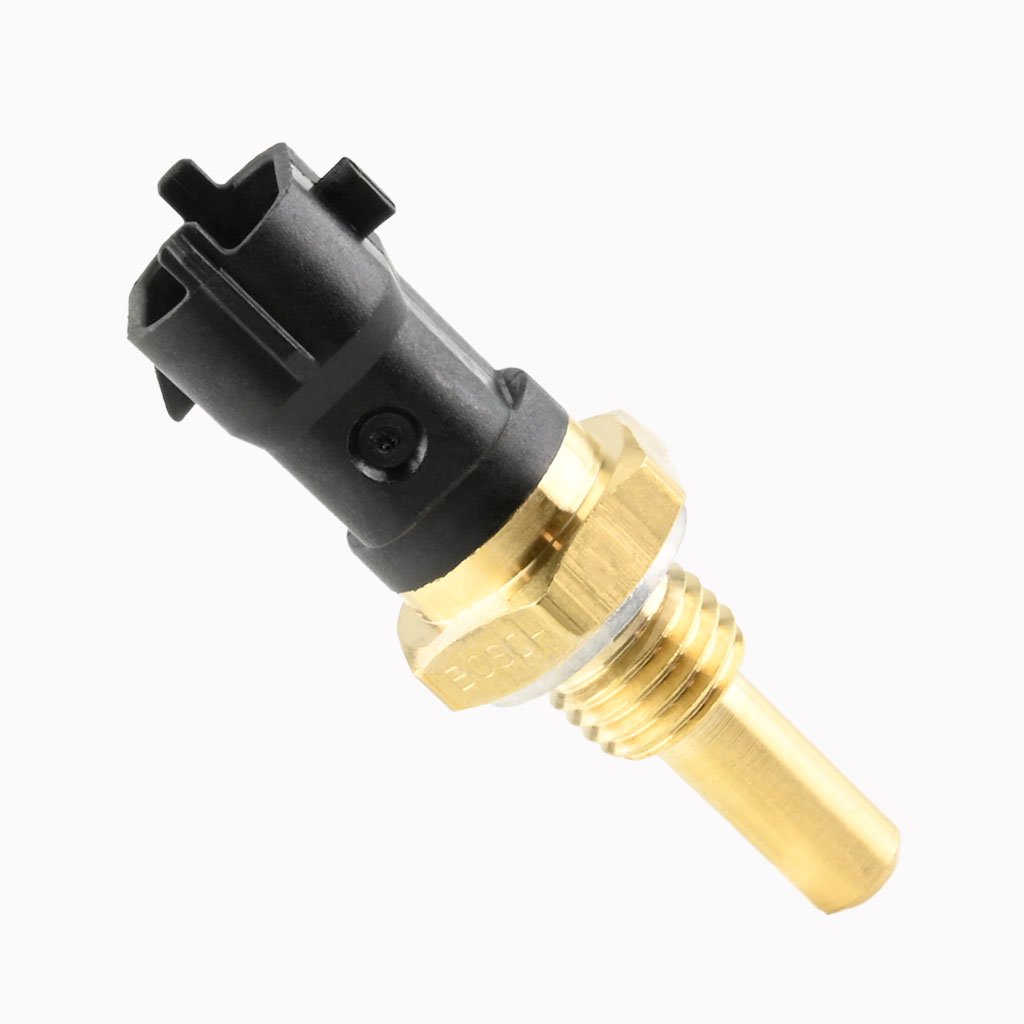

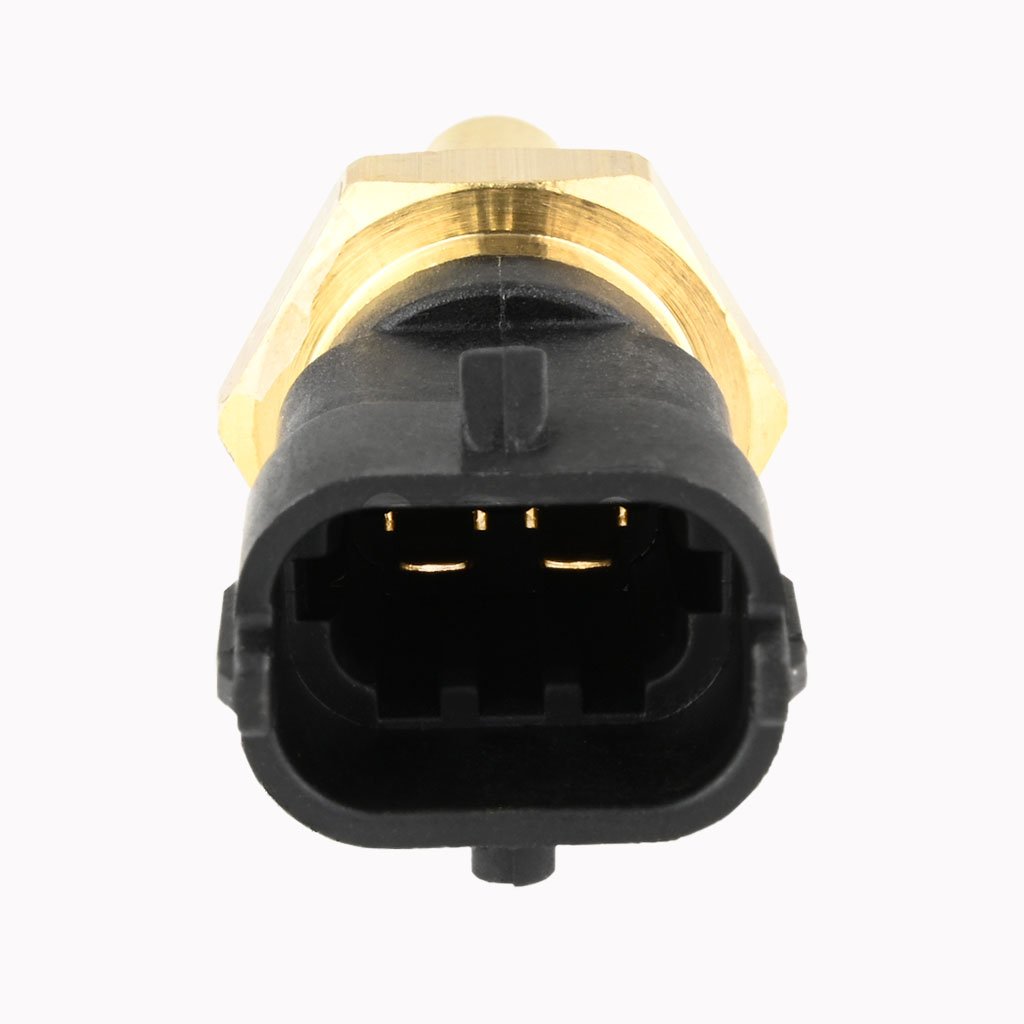

Bosch Motorsport NTC M12-H water oil fuel temperature sensor -40°C / +150°C
El precio original era: 60,64 €.40,64 €El precio actual es: 40,64 €.
This sensor is designed to measure fluid temperatures e.g. oil, water or fuel. This signal may be used as a control value for engine control units or as a measurement value which is logged in a data acquisition system. The NTC sensing element has a negative temperature coefficient. This means, that with increasing temperature the conductivity rises. The sensing element of the temperature sensor is made of semiconducting heavy metal oxide and oxidized mixed crystals, which are equipped with a protective housing. The main benefit of the sensor is the combination of a high quality production part and a robust compact design.
- Compatible fluids: fuel (included E85), water, oil
- Application: -40°C to 150°C
- Male thread: M12x1.5
- Wrench size: 19 mm
- Installation torque: 18 Nm
- Weight w/o wire: 28.3 g
- Sealing: Al-washer
- Characteristic: NTC
- Nominal resistance at 20°C: 2.5 kOhm ± 6 %
- Accuracy at 25°C: ± 1.4°C
- Accuracy at 100°C: ± 0.8°C
This sensor is designed to measure fluid temperatures e.g. oil, water or fuel. This signal may be used as a control value for engine control units or as a measurement value which is logged in a data acquisition system. The NTC sensing element has a negative temperature coefficient. This means, that with increasing temperature the conductivity rises. The sensing element of the temperature sensor is made of semiconducting heavy metal oxide and oxidized mixed crystals, which are equipped with a protective housing. The main benefit of the sensor is the combination of a high quality production part and a robust compact design.
- Compatible fluids: fuel (included E85), water, oil
- Application: -40°C to 150°C
- Male thread: M12x1.5
- Wrench size: 19 mm
- Installation torque: 18 Nm
- Weight w/o wire: 28.3 g
- Sealing: Al-washer
- Characteristic: NTC
- Nominal resistance at 20°C: 2.5 kOhm ± 6 %
- Accuracy at 25°C: ± 1.4°C
- Accuracy at 100°C: ± 0.8°C
