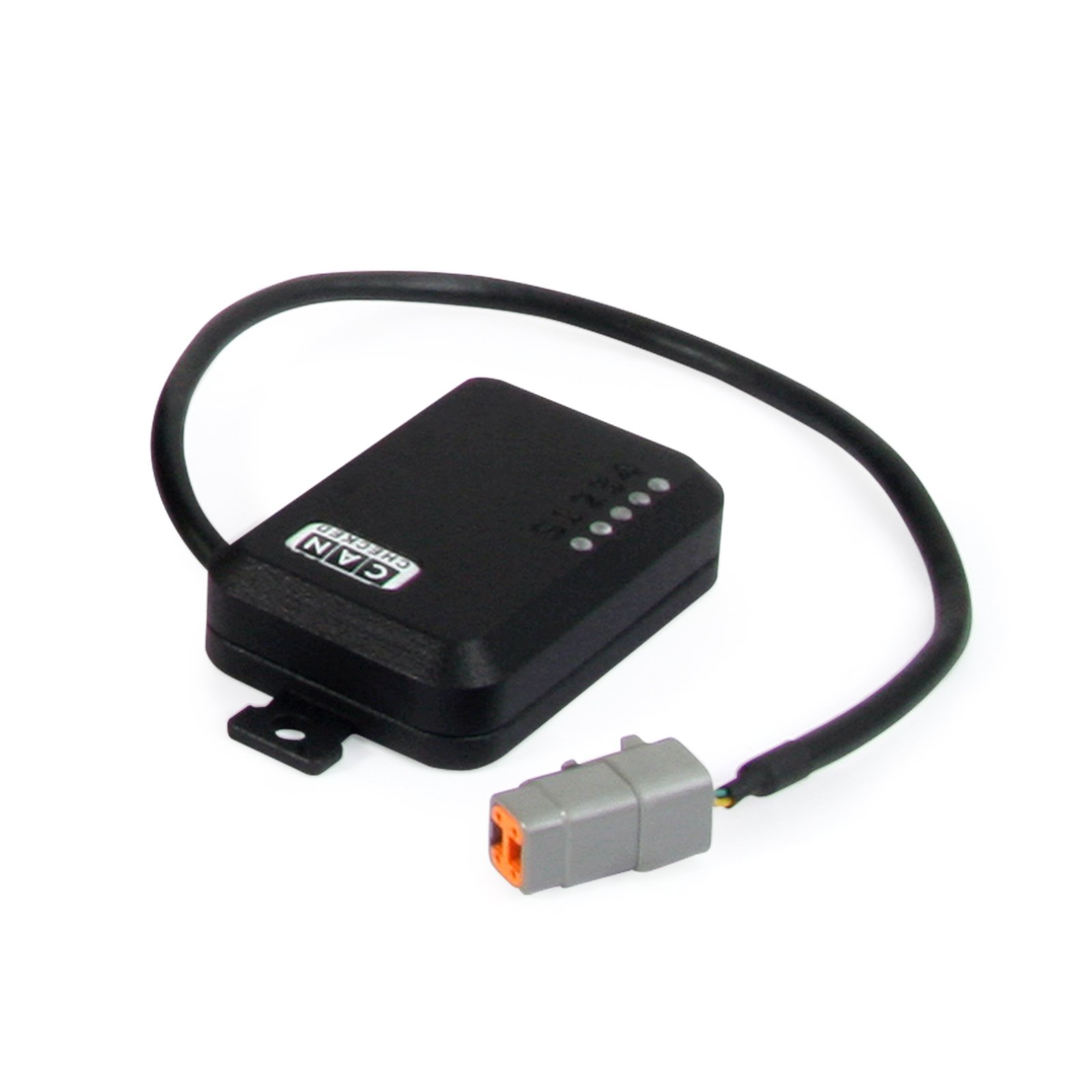

CANchecked TMR01 – Wireless Receiver Tire Monitoring
343,33 €
TMU and BMU – Wireless Multi-Channel Infrared Sensors
Our TMU and BMU are advanced wireless multi-channel infrared sensors for tire or brake temperature monitoring with an external receiver box and CAN connectivity. Fully configurable with 8 or 4 temperature channels per tire or brake disc, and an update rate of up to 50 Hz. Rechargeable battery with 15 hours of active usage on track.
Knowing how the surface temperature develops during a lap is invaluable for suspension tuning, driver training, and setup selection. Since it is a wireless system, it is very easy to install and can be switched from one car to another in just a few minutes.
Receiver Box – Technical Specifications
- Supply Voltage: 5-20V
- Current Consumption: 50mA
- Cable: 0.5m AWG22
- Connector: DTM04-4P (including counterpart DTM06-4S)
Communication
- CAN Standard: 2.0A (11-bit ID) or 2.0B
- Bit Rate: 500Kbps (Standard) / 1Mbps
- Byte Order: Big Endian (MSB first)
- CAN Termination: none
- Base CAN-ID: Standard 0x310 (Tire) / 0x210 (Brake), configurable via CAN
- Temperature Conversion: -200°C offset, 0.1°C / bit
Important Information
The TMR01 or BMR01 is the single receiver box for our wireless tire and brake temperature sensors. When you purchase our TMU04 or BMU04 set, this receiver box is always included and does not need to be purchased separately. If you purchase individual TMU01 or BMU01 sensors, you will need this receiver box to operate your sensors.
This system is ideal for monitoring tire and brake temperatures and can improve the performance and safety of your vehicle on track.
TMU and BMU – Wireless Multi-Channel Infrared Sensors
Our TMU and BMU are advanced wireless multi-channel infrared sensors for tire or brake temperature monitoring with an external receiver box and CAN connectivity. Fully configurable with 8 or 4 temperature channels per tire or brake disc, and an update rate of up to 50 Hz. Rechargeable battery with 15 hours of active usage on track.
Knowing how the surface temperature develops during a lap is invaluable for suspension tuning, driver training, and setup selection. Since it is a wireless system, it is very easy to install and can be switched from one car to another in just a few minutes.
Receiver Box – Technical Specifications
- Supply Voltage: 5-20V
- Current Consumption: 50mA
- Cable: 0.5m AWG22
- Connector: DTM04-4P (including counterpart DTM06-4S)
Communication
- CAN Standard: 2.0A (11-bit ID) or 2.0B
- Bit Rate: 500Kbps (Standard) / 1Mbps
- Byte Order: Big Endian (MSB first)
- CAN Termination: none
- Base CAN-ID: Standard 0x310 (Tire) / 0x210 (Brake), configurable via CAN
- Temperature Conversion: -200°C offset, 0.1°C / bit
Important Information
The TMR01 or BMR01 is the single receiver box for our wireless tire and brake temperature sensors. When you purchase our TMU04 or BMU04 set, this receiver box is always included and does not need to be purchased separately. If you purchase individual TMU01 or BMU01 sensors, you will need this receiver box to operate your sensors.
This system is ideal for monitoring tire and brake temperatures and can improve the performance and safety of your vehicle on track.
