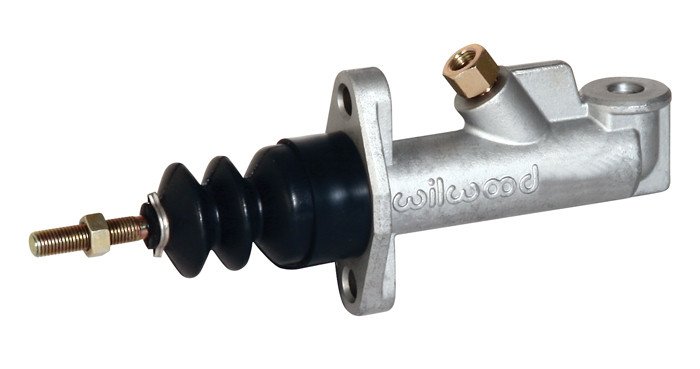

Compact Remote Reservoir Master Cylinder Wilwood 260-6089 0.750″
87,56 €
Compact Remote Reservoir Master Cylinder – Product Summary
Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in four bore sizes from .625″ to .813″ with a full 1.4″ of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.

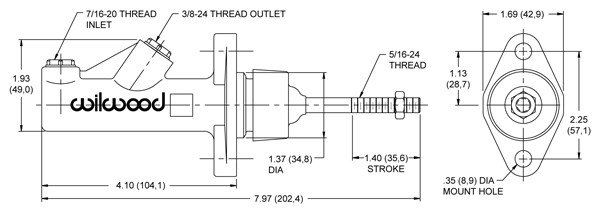

Master Cylinder Dimensions
Bore Size 3/4″
Area (in²) 0.440
Stroke 1.40
Volume (cu in) 0.61
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Bare
Reservoir
Res Type Remote
Overall Length(in) 7.97″
Flange to End Length (in) 4.10″
Inlet Size (in) 7/16-20
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Compact Remote Reservoir Master Cylinder – Product Summary
Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in four bore sizes from .625″ to .813″ with a full 1.4″ of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.
Master Cylinder Dimensions
Bore Size 3/4″
Area (in²) 0.440
Stroke 1.40
Volume (cu in) 0.61
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Bare
Reservoir
Res Type Remote
Overall Length(in) 7.97″
Flange to End Length (in) 4.10″
Inlet Size (in) 7/16-20
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
