GS Compact Remote Reservoir Master Cylinder Wilwood 260-15088 0.500″
97,39 €

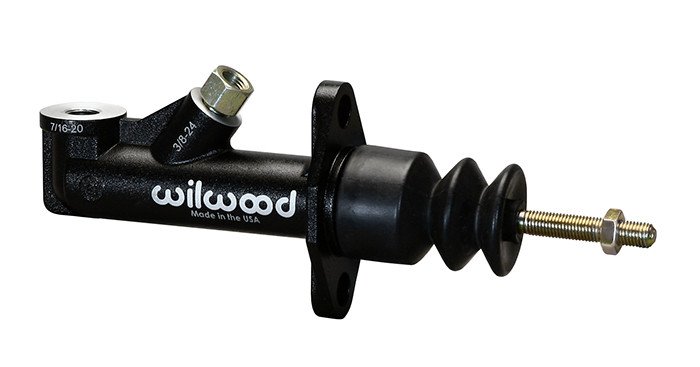

GS Compact Remote Master Cylinder – Product Summary
Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Master Cylinder Dimensions
Bore Size 1/2″
Area (in²) 0.190
Stroke 1.25
Volume (cu in) 0.24
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black E-coat
Reservoir
Res Type Remote

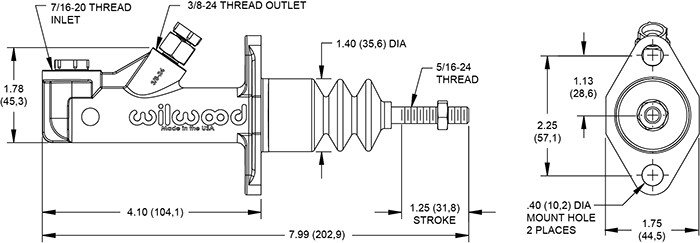

Additional Dimensions
Overall Length(in) 7.85″
Flange to End Length (in) 4.10
Inlet Size (in) 7/16-20
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
GS Compact Remote Master Cylinder – Product Summary
Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Master Cylinder Dimensions
Bore Size 1/2″
Area (in²) 0.190
Stroke 1.25
Volume (cu in) 0.24
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black E-coat
Reservoir
Res Type Remote
Additional Dimensions
Overall Length(in) 7.85″
Flange to End Length (in) 4.10
Inlet Size (in) 7/16-20
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
