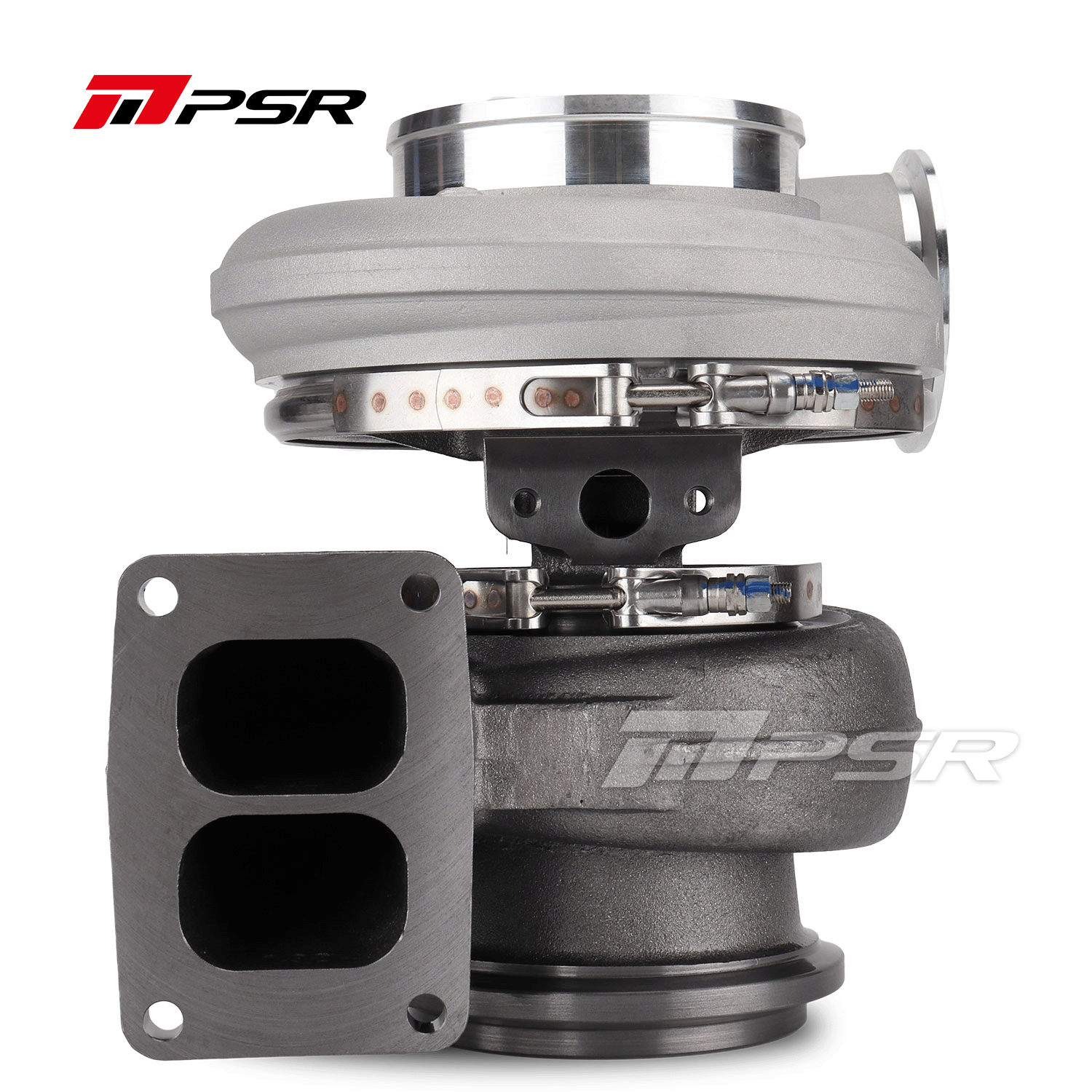

Turbocharger Pulsar PSR 480G 1.45 T6 Divided Inlet 3/4″ Marmon Outlet Journal Bearing
PSR 480G Journal Bearing Billet Compressor Wheel Turbocharger
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 0.9A/R, 1.10A/R, 1.25 A/R with 4” Vband Outlet
Compressor Housing: Standard
Turbine Housing: T6 Divided 1.45 A/R
Turbine Wheel: 96/88mm
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1250
Features:
- Compressor Wheel: 80x113mm 7+7 Blade
- Billet Compressor Wheels with Extended Tip Technology
- Turbine Wheel: 96x88mm 9+0
- STD and T51R MOD in option for Compressor Cover
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Inlet: 5 inches Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.25A/R, 1.15A/R, 1.32A/R,1.45A/R and 1.58A/R in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
* V-band Flange Kits are available:
- TRB. Outlet 4 inches Flange & Clamp Kit (164340001)
- TRB. Outlet 5 inches Flange & Clamp Kit (164340002)
- COMP. Outlet 3 inches Flange & Clamp Kit (164340003)
- COMP. Outlet 3.5 inches Flange & Clamp Kit (164340004)
- COMP. Outlet 4 inches Flange & Clamp Kit (164340005)
PSR 480G Journal Bearing Billet Compressor Wheel Turbocharger
- Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- Inconel 713 turbine wheel for high-temperature operation
- T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
- T4 Divided turbine housing in 0.9A/R, 1.10A/R, 1.25 A/R with 4” Vband Outlet
Compressor Housing: Standard
Turbine Housing: T6 Divided 1.45 A/R
Turbine Wheel: 96/88mm
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1250
Features:
- Compressor Wheel: 80x113mm 7+7 Blade
- Billet Compressor Wheels with Extended Tip Technology
- Turbine Wheel: 96x88mm 9+0
- STD and T51R MOD in option for Compressor Cover
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Inlet: 5 inches Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.25A/R, 1.15A/R, 1.32A/R,1.45A/R and 1.58A/R in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
* V-band Flange Kits are available:
- TRB. Outlet 4 inches Flange & Clamp Kit (164340001)
- TRB. Outlet 5 inches Flange & Clamp Kit (164340002)
- COMP. Outlet 3 inches Flange & Clamp Kit (164340003)
- COMP. Outlet 3.5 inches Flange & Clamp Kit (164340004)
- COMP. Outlet 4 inches Flange & Clamp Kit (164340005)
