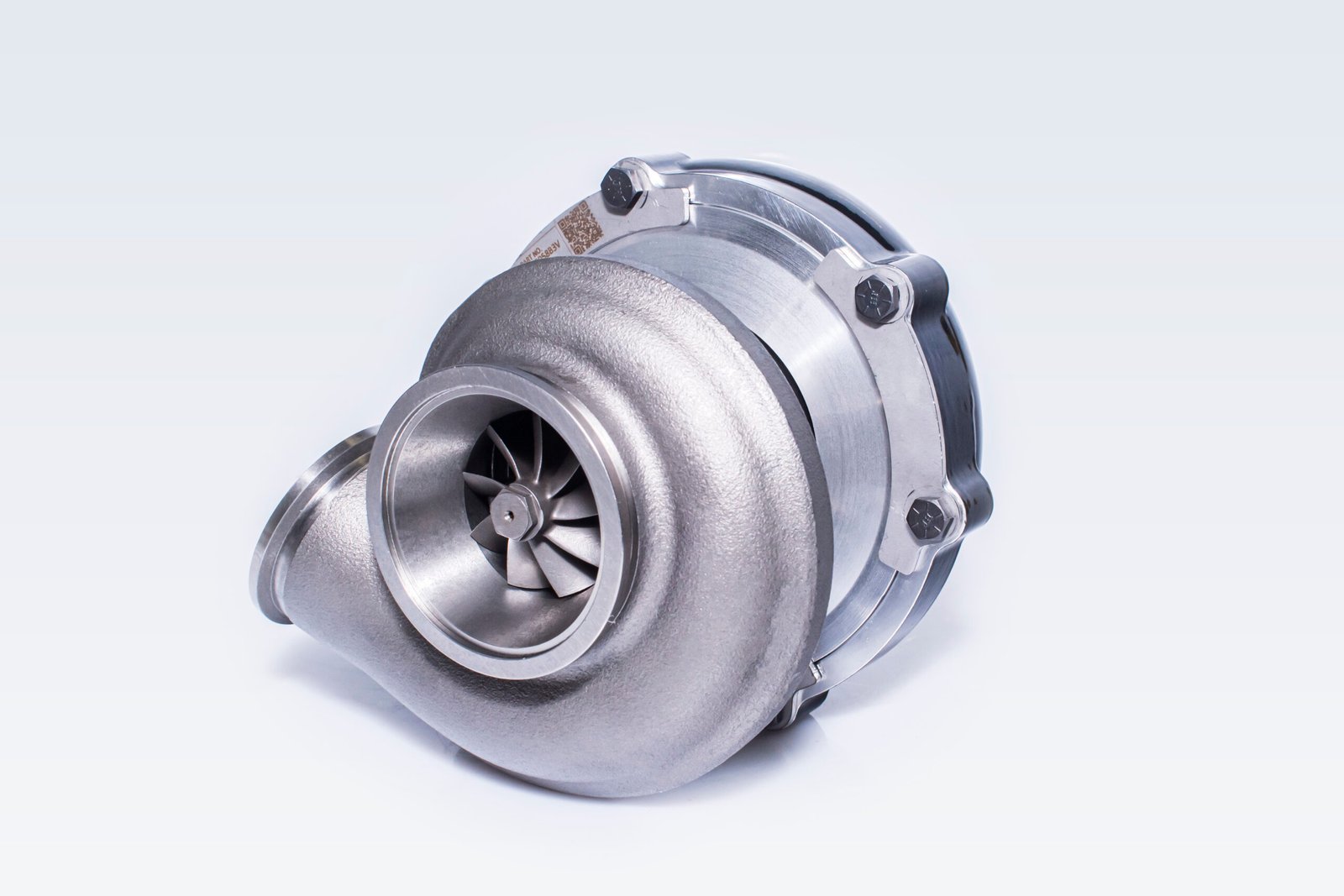

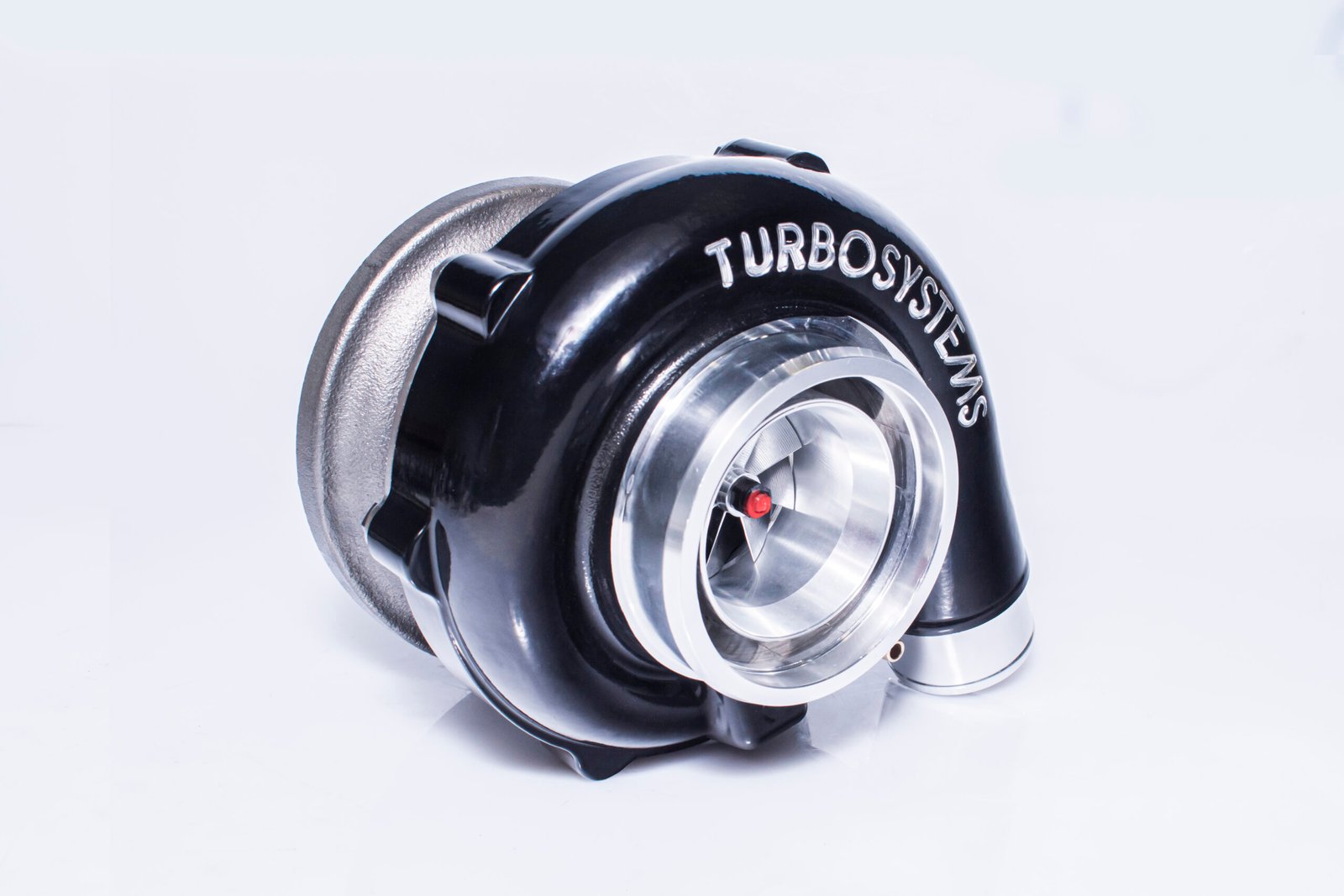

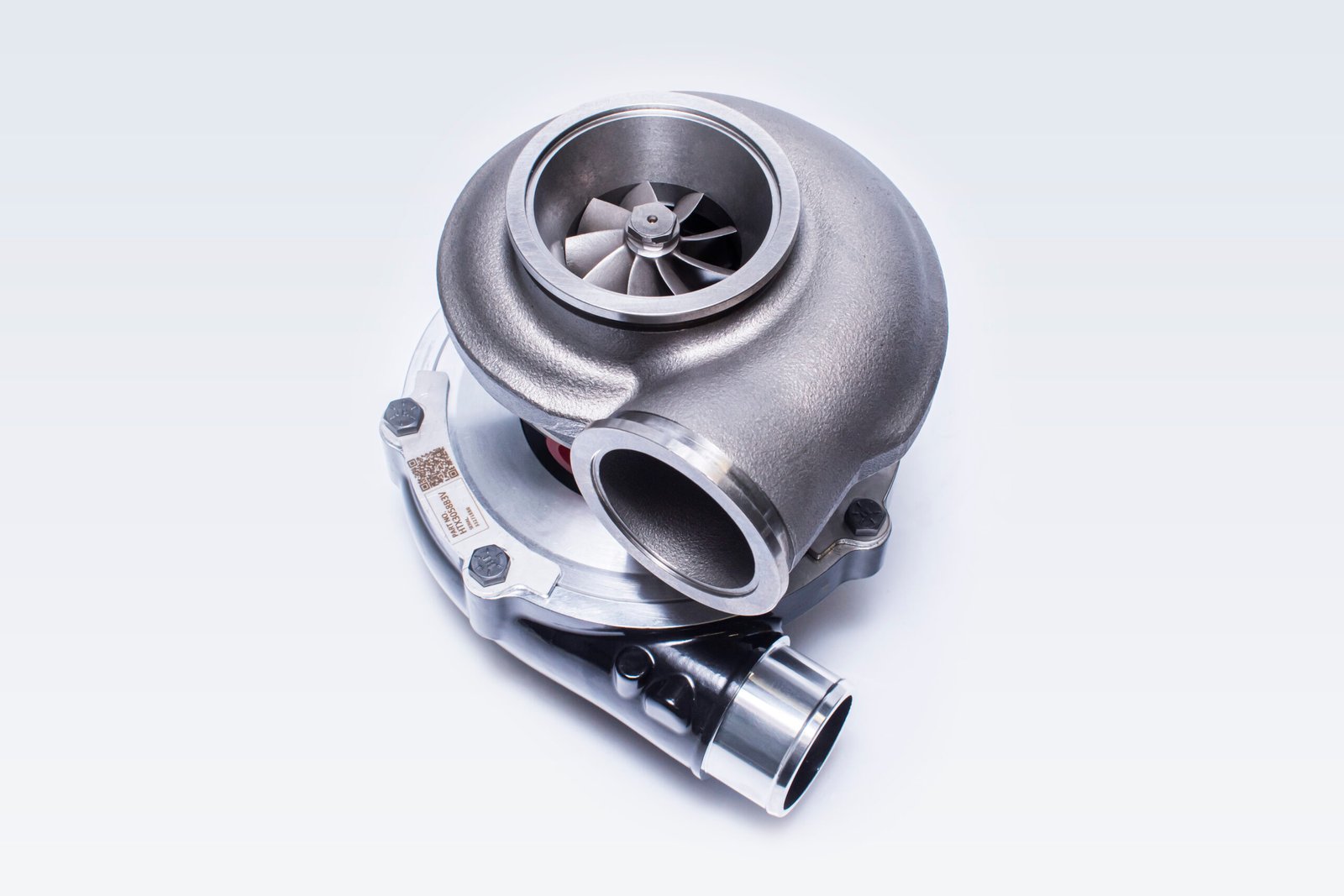

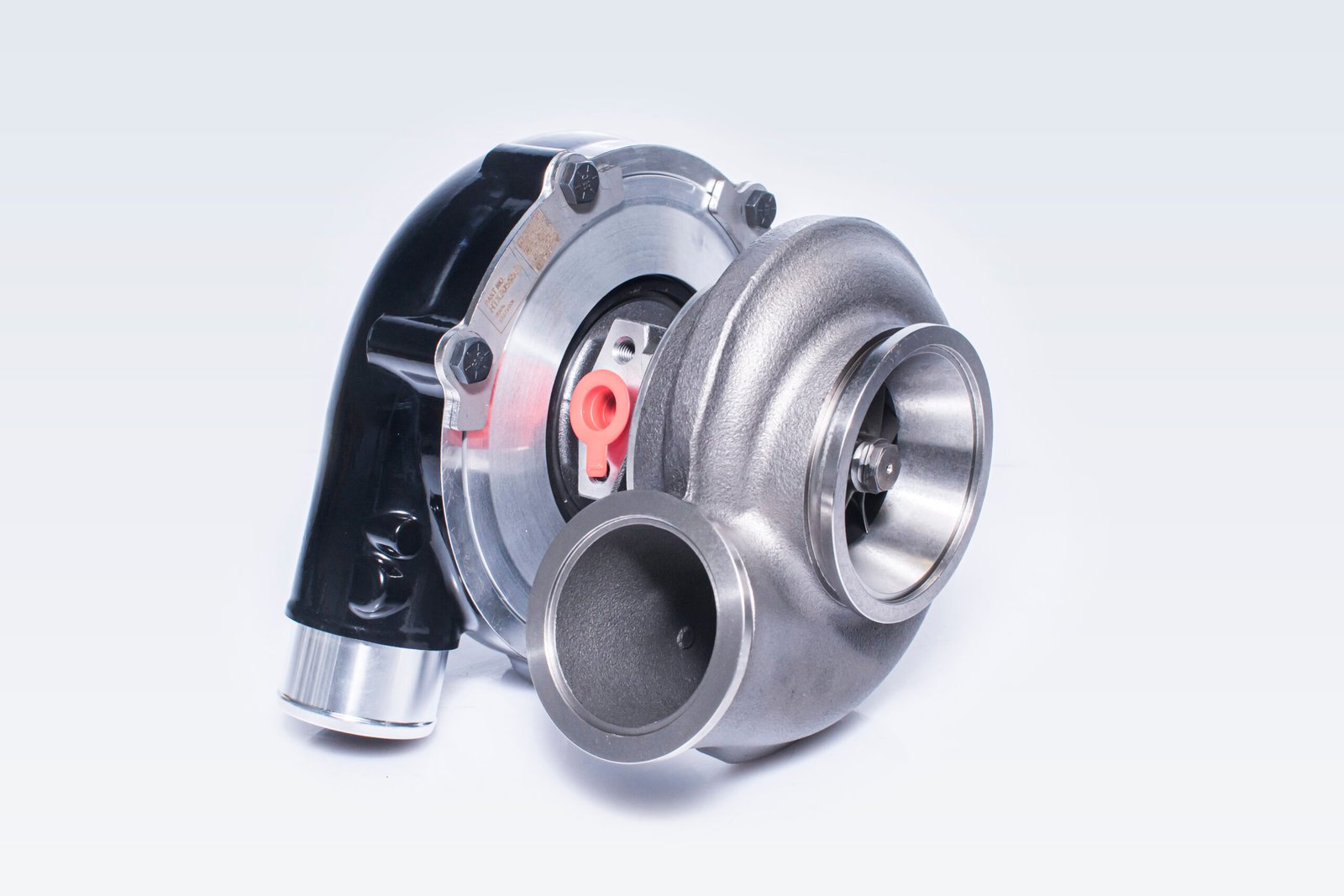

Turbocharger TurboSystems HTX3058B3V
High performance turbocharger with 12cm2, 1.01 AR 2.25″ V-band turbine housing designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range:450-650 HP;
This turbocharger comes with 2 V-band sets (for turbine flange and exhaust).
Compressor side:
- Ported shroud compressor housing;
- Compressor wheel:in-house made, reinforced 58/72 mm 9+0 blades machined from the solid aluminium;
- Intake:101mm (4″);
- Air outlet:51mm (2″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing: single scroll, 12cm2 AR: 1.01;
- Turbine wheel:custom design 60/55mm 9 blades;
- Flange: 25″v-band single scroll;
- Exhaust connection:3″ V-band clamp;
Included Oil drain flange
High performance turbocharger with 12cm2, 1.01 AR 2.25″ V-band turbine housing designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range:450-650 HP;
This turbocharger comes with 2 V-band sets (for turbine flange and exhaust).
Compressor side:
- Ported shroud compressor housing;
- Compressor wheel:in-house made, reinforced 58/72 mm 9+0 blades machined from the solid aluminium;
- Intake:101mm (4″);
- Air outlet:51mm (2″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing: single scroll, 12cm2 AR: 1.01;
- Turbine wheel:custom design 60/55mm 9 blades;
- Flange: 25″v-band single scroll;
- Exhaust connection:3″ V-band clamp;
Included Oil drain flange
