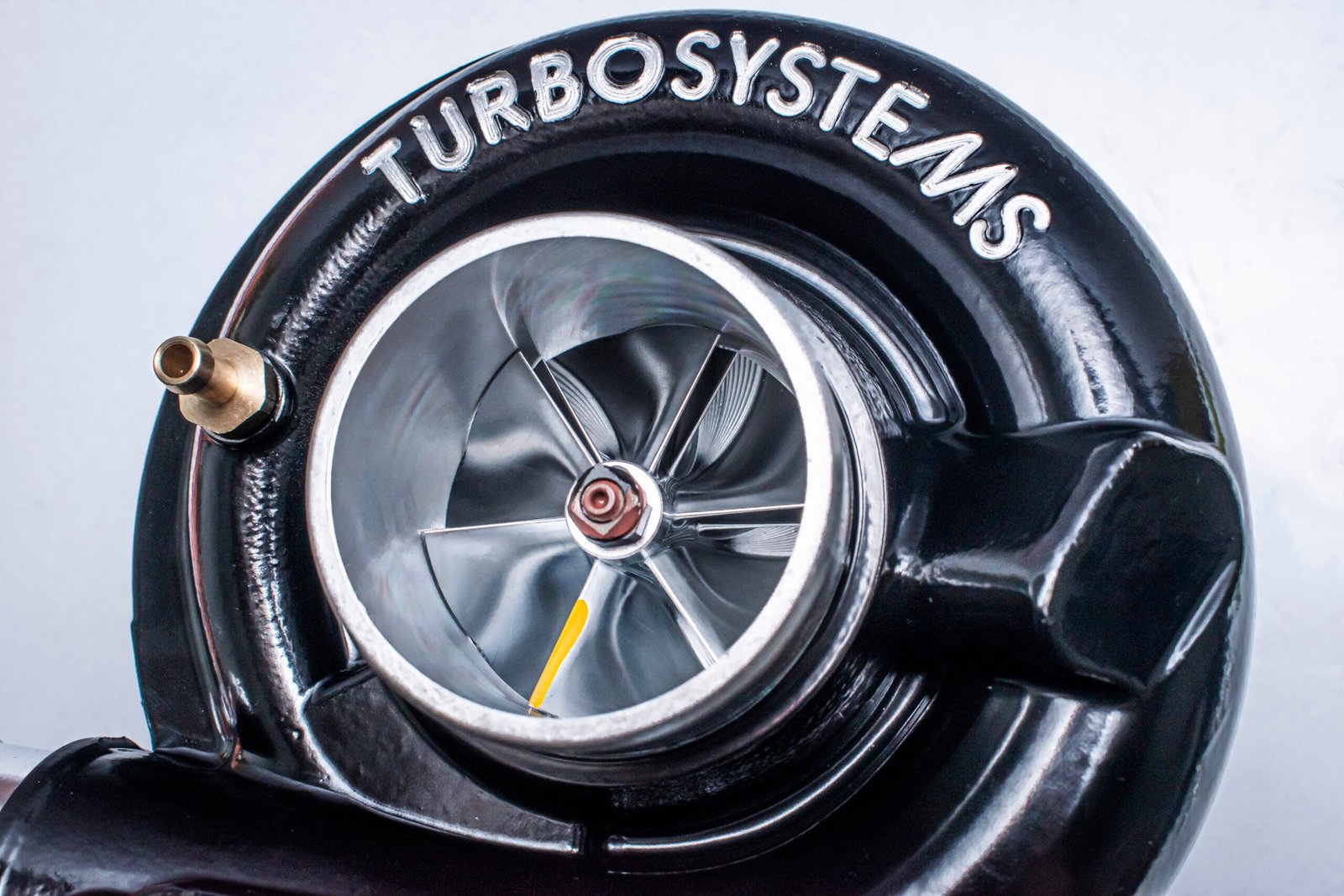

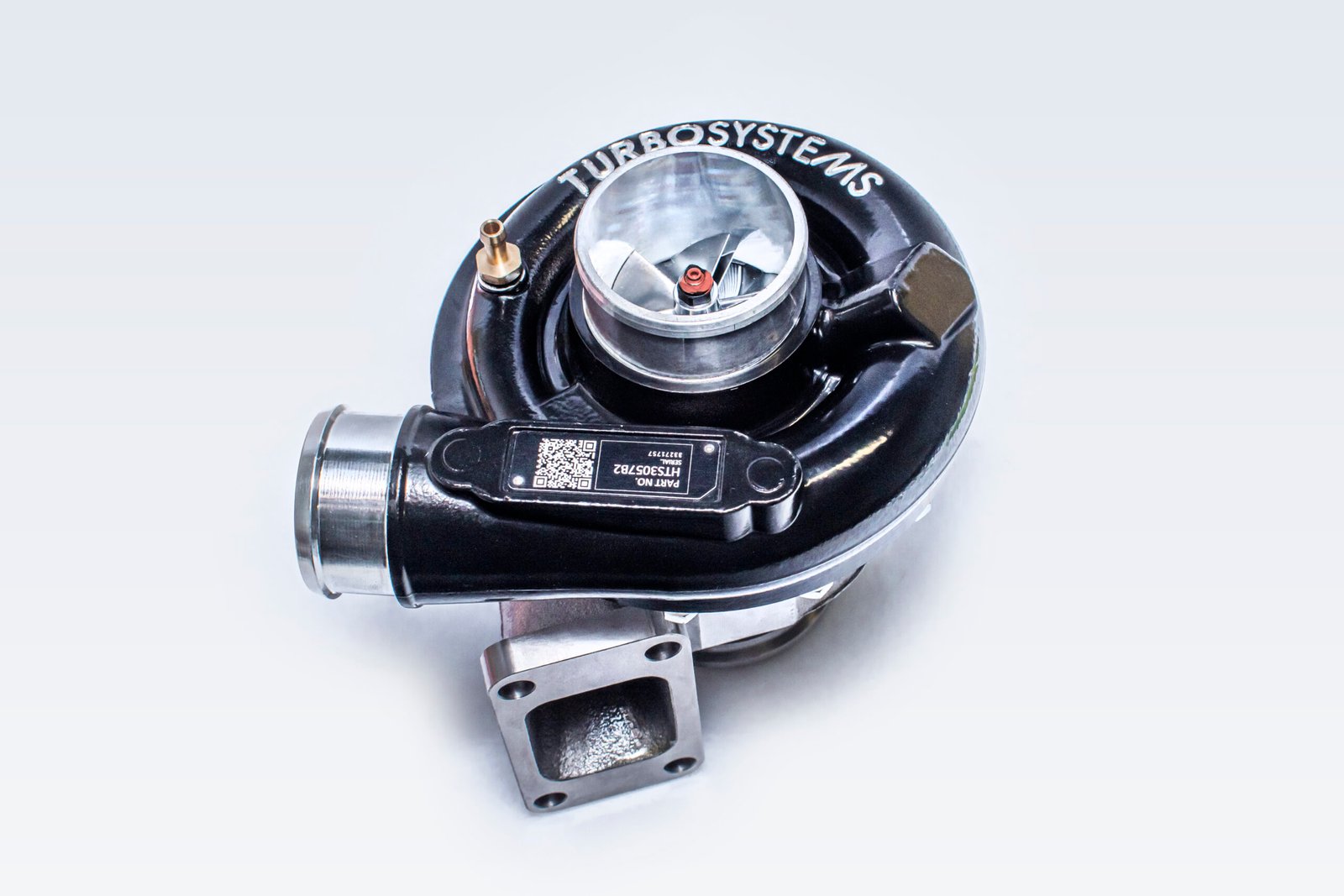

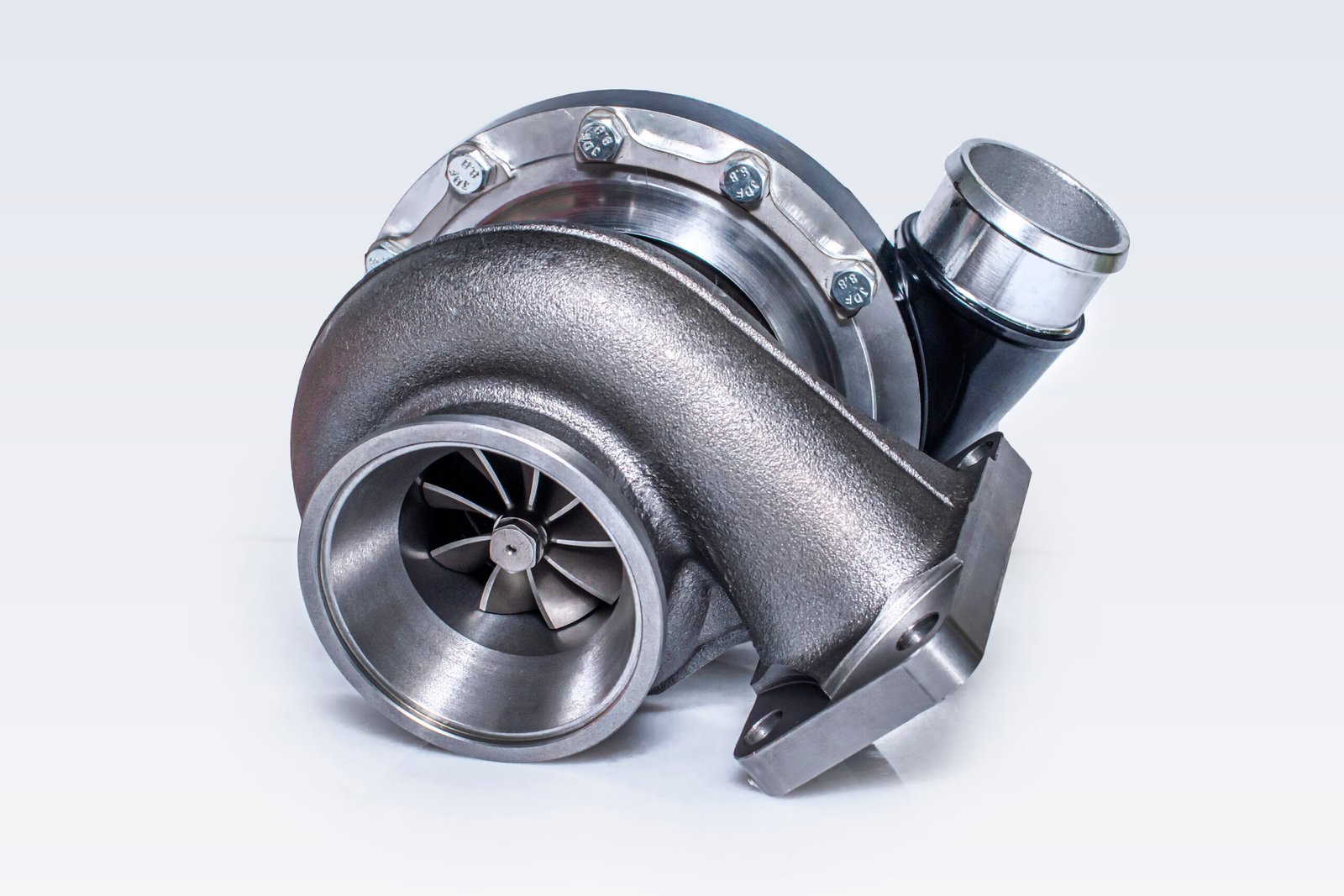

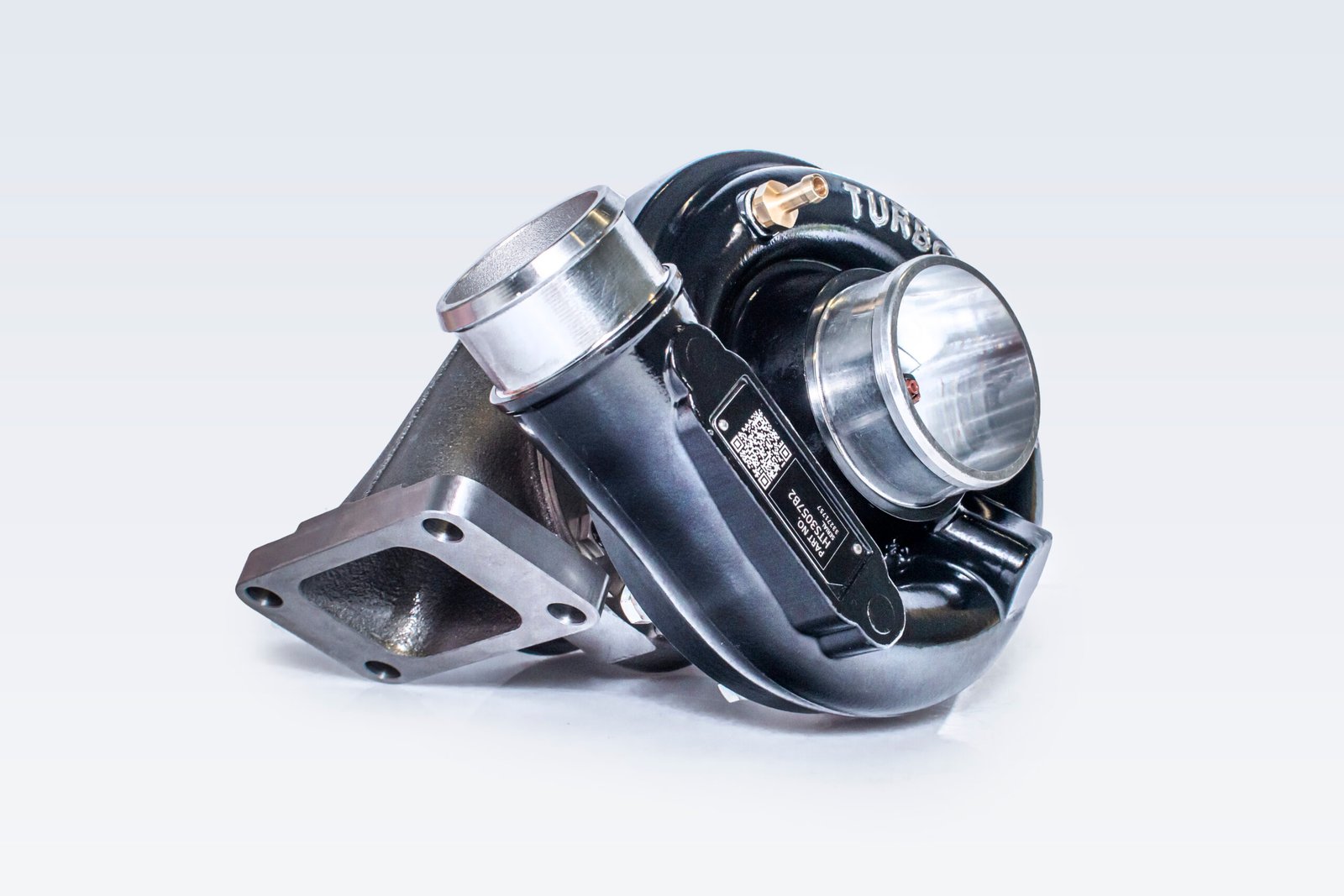

Turbocharger TurboSystems HTX4271B1
High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° (as shown in pictures) and straight for easier connection. Stainless steel housing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range:600-1000 HP;
Compressor side:
- Compressor wheel:in-house made, reinforced 71/88mm 10+0 blades machined from the solid aluminium;
- Intake:101mm (4″);
- Air outlet:63mm (2.5″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing:twin scroll, 19cm2 / AR: 1.02;
- Turbine wheel:custom design 78.5/70mm 9 blades
- Flange: T4 twin scroll;
- Exhaust connection:3″ V-band clamp;
Included Vband clamp and Oil drain flange
High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices – 90° (as shown in pictures) and straight for easier connection. Stainless steel housing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.
- Power range:600-1000 HP;
Compressor side:
- Compressor wheel:in-house made, reinforced 71/88mm 10+0 blades machined from the solid aluminium;
- Intake:101mm (4″);
- Air outlet:63mm (2.5″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing:twin scroll, 19cm2 / AR: 1.02;
- Turbine wheel:custom design 78.5/70mm 9 blades
- Flange: T4 twin scroll;
- Exhaust connection:3″ V-band clamp;
Included Vband clamp and Oil drain flange
