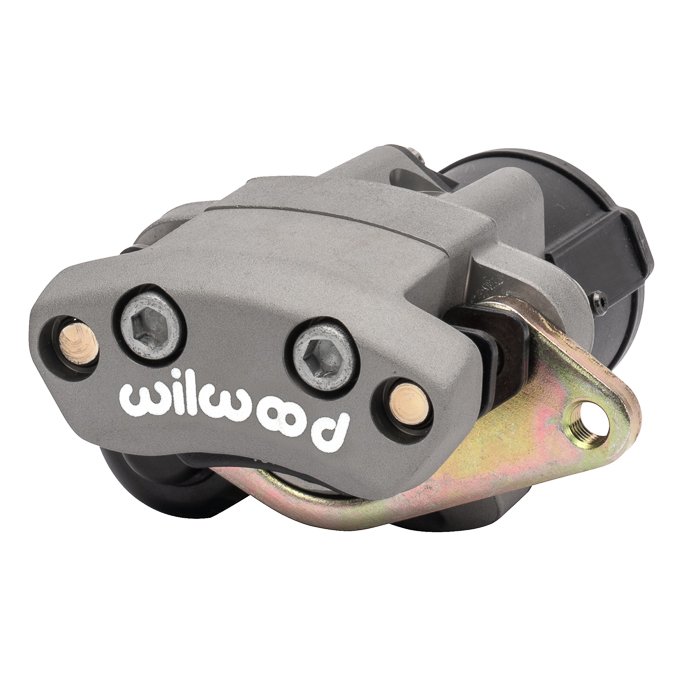

Wilwood 120-17080 HE1 Hydra-Electric Floating Mount Caliper Right 1 Piston
459,64 €
HE1 Hydra-Electric
These compact, low profile sliding mount HE1 Hydra-mechanical calipers can be utilized in recreational, industrial, utility, and other vehicles and are available in a 1.25” piston bore size. Fits rotors from 11.00” to 14.00” in diameter with a thickness range of .16” to .39”. Utilizing gearing and motor from our original Electronic Parking Brake Caliper.
Pistons
| Piston Count | 1 |
| Piston Area (in²) | 1.23 |
| Piston Type | Stainless |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 0.39 |
| Rotor Diameter(in) | 14.00 |
Pad Dimensions
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 4.7 |
Colors & Finish
| Color | Clear |
| Finish | Clear Anodize |
Mounting
| Mount Center(in) | 4.75 |
| Mount Position | |
| Mount Side | Right Hand |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.39 |
| Maximum Rotor Width (in) | 0.39 |
| Minimum Rotor Width (in) | 0.15 |
| Maximum Rotor Diameter(in) | 14.00 |
| Minimum Rotor Diameter(in) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 1.7 |
| Total Pad Volume (in³) | 0.26 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 1.23 |
Mounting Specifications
| Mount Type | Floating |
| Mount Side | Right Hand |
| Mount Center(in) | 4.75 |
| Mount Hole Size(in) | 0.39 |
| Mount Height(in) | |
| Inlet Thread Size | 1/8-27 NPT |
HE1 Hydra-Electric
These compact, low profile sliding mount HE1 Hydra-mechanical calipers can be utilized in recreational, industrial, utility, and other vehicles and are available in a 1.25” piston bore size. Fits rotors from 11.00” to 14.00” in diameter with a thickness range of .16” to .39”. Utilizing gearing and motor from our original Electronic Parking Brake Caliper.
Pistons
| Piston Count | 1 |
| Piston Area (in²) | 1.23 |
| Piston Type | Stainless |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 0.39 |
| Rotor Diameter(in) | 14.00 |
Pad Dimensions
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 4.7 |
Colors & Finish
| Color | Clear |
| Finish | Clear Anodize |
Mounting
| Mount Center(in) | 4.75 |
| Mount Position | |
| Mount Side | Right Hand |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.39 |
| Maximum Rotor Width (in) | 0.39 |
| Minimum Rotor Width (in) | 0.15 |
| Maximum Rotor Diameter(in) | 14.00 |
| Minimum Rotor Diameter(in) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 1.7 |
| Total Pad Volume (in³) | 0.26 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 1.23 |
Mounting Specifications
| Mount Type | Floating |
| Mount Side | Right Hand |
| Mount Center(in) | 4.75 |
| Mount Hole Size(in) | 0.39 |
| Mount Height(in) | |
| Inlet Thread Size | 1/8-27 NPT |
