Wilwood 120-3842 Dynalite Single IIIA Universal Lug Mount Caliper 2 Pistons
117,79 €

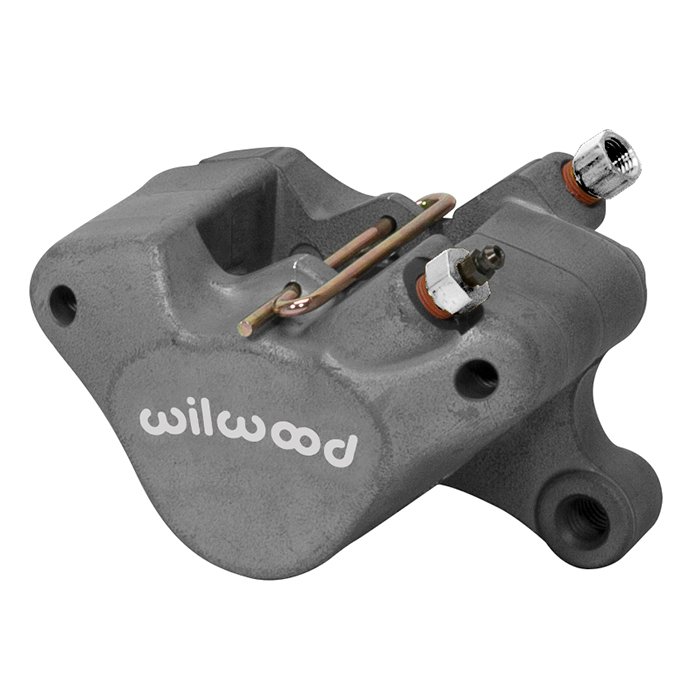

Dynalite Single IIIA
Wilwood’s Dynalite Single IIIA utilizes a cost effective permanent mold casting with advanced design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.8 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in many OEM applications like snowmobile & motorcycle.
Pistons
| Piston Count | 2 |
| Piston Area (in²) | 2.40 |
| Piston Type | Stainless |
| Dust Boot | No |
Rotor Dimensions
| Rotor Width (in) | 0.25 |
| Rotor Diameter(in) | 13.00 |
Pad Dimensions
| Pad Area (in²) | 3 |
| Pad Volume (in³) | 1.1 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 2.0 |
Colors & Finish
| Color | Anodize |
| Finish | Type III Anodize |
Mounting
| Mount Center(in) | 3.75 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.25 |
| Maximum Rotor Width (in) | 0.25 |
| Minimum Rotor Width (in) | 0.18 |
| Maximum Rotor Diameter(in) | 13.00 |
| Minimum Rotor Diameter(in) | 6.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6812 |
| Brake Pad Type 2 | 7012 |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 3 |
| Total Pad Volume (in³) | 1.1 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 2.40 |

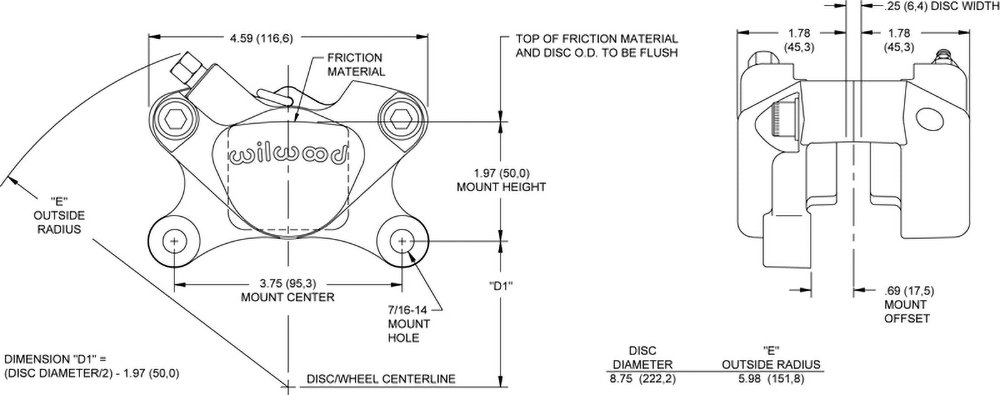

Mounting Specifications
| Mount Type | Lug |
| Mount Side | Universal |
| Mount Center(in) | 3.75 |
| Mount Hole Size(in) | 0.39 |
| Mount Height(in) | 1.92 |
| Inlet Thread Size | 3/8-24 |
