Wilwood 120-9851 SC1 Universal Floating Mount Caliper 1 Piston
84,59 €

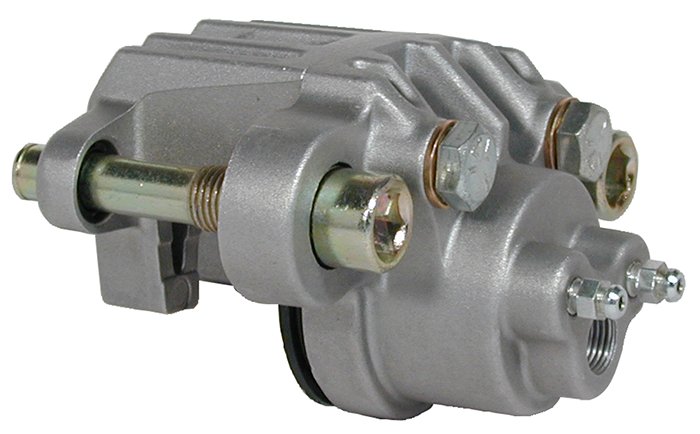

SC1 Single Piston
Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.
The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”
Pistons
| Piston Count | 1 |
| Piston Area (in²) | 1.23 |
| Piston Type | Aluminum |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 0.25 |
| Rotor Diameter(in) | 9.00 |
Pad Dimensions
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 1.3 |
Colors & Finish
| Color | Clear |
| Finish | Clear Anodize |
Mounting
| Mount Center(in) | 3.00 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.25 |
| Maximum Rotor Width (in) | 0.25 |
| Minimum Rotor Width (in) | 0.15 |
| Maximum Rotor Diameter(in) | 9.00 |
| Minimum Rotor Diameter(in) | 6.50 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 1.7 |
| Total Pad Volume (in³) | 0.26 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 1.23 |

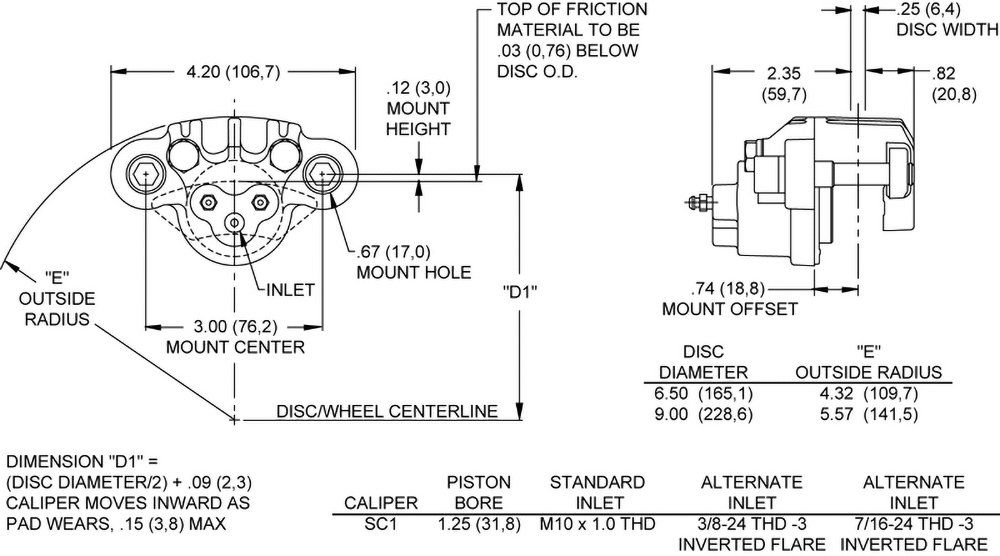

Mounting Specifications
| Mount Type | Floating |
| Mount Side | Universal |
| Mount Center(in) | 3.00 |
| Mount Hole Size(in) | 0.67 |
| Mount Height(in) | 0.12 |
| Inlet Thread Size | M10 x 1.00 |
SC1 Single Piston
Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.
The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”
Pistons
| Piston Count | 1 |
| Piston Area (in²) | 1.23 |
| Piston Type | Aluminum |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 0.25 |
| Rotor Diameter(in) | 9.00 |
Pad Dimensions
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
Duty Rating & Material
| Material | Cast Aluminium |
| Weight(Lbs) | 1.3 |
Colors & Finish
| Color | Clear |
| Finish | Clear Anodize |
Mounting
| Mount Center(in) | 3.00 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.25 |
| Maximum Rotor Width (in) | 0.25 |
| Minimum Rotor Width (in) | 0.15 |
| Maximum Rotor Diameter(in) | 9.00 |
| Minimum Rotor Diameter(in) | 6.50 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 1.7 |
| Total Pad Volume (in³) | 0.26 |
| Mount |
Piston Specifications
| Piston 1 Bore (in) | 1.25 |
| Piston 2 Bore (in) | |
| Piston 3 Bore (in) | |
| Total Piston Area (in²) | 1.23 |
Mounting Specifications
| Mount Type | Floating |
| Mount Side | Universal |
| Mount Center(in) | 3.00 |
| Mount Hole Size(in) | 0.67 |
| Mount Height(in) | 0.12 |
| Inlet Thread Size | M10 x 1.00 |
