Wilwood 140-10786 Dynapro Radial Front Drag Brake Kit for Chevrolet Camaro Pontiac Firebird 1993-2002
1.002,42 €

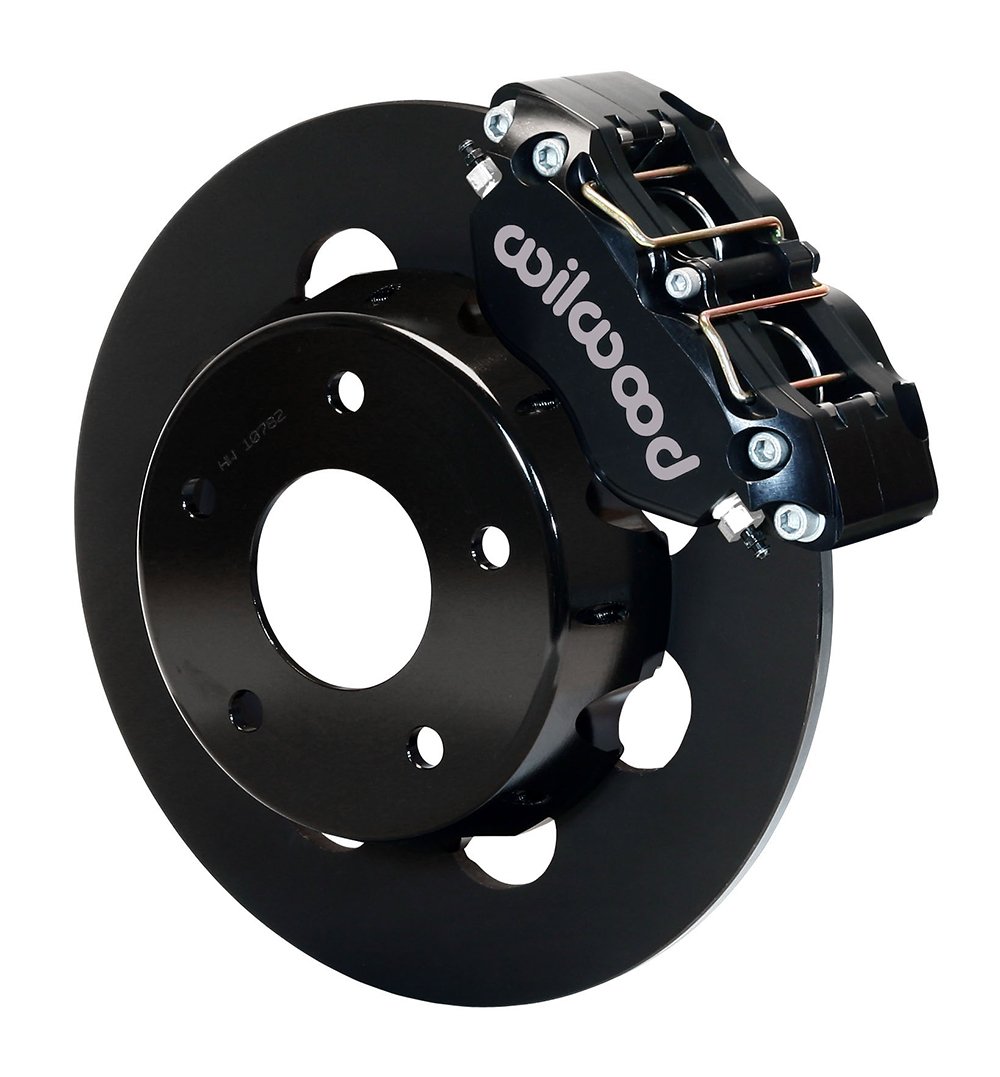

Dynapro Radial Front Drag Brake Kit
NDPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16” or larger wheels generally do not fit inside the popular 15” drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the NDPR caliper. Kits with 3/8” steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81” rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.
Kit Summary
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 4 – Type III Anodize |
| Rotor Diameter: | 11.75 |
| Min Wheel Diameter Req’d*: | 15 |
Vehicle Compatibility
- Chevrolet Camaro 1998-2002 Disc Brake Rear
- Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Disc Rear.
- Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Drum Rear.
- Pontiac Firebird 1998-2002 All
Kit Components & Specifications
Calipers
| Left Hand – Part No: | 120-9993 |
| Right Hand – Part No: | 120-9993 |
| Type: | Narrow Dynapro Radial Mount |
| Finish Color: | Type III Anodize |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.75 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
Rotors
| Left Hand – Part No: | 160-3201 |
| Right Hand – Part No: | 160-3201 |
| Type: | Solid Steel Rotor |
| Style: | Plain Face |
| Surface Finish: | Black Electro Coat |
| Material: | Steel |
| Outside Diameter (in): | 11.75 |
| Width (in): | 0.35 |
| Vane Count: | Solid |
| Design Type: | Solid |
| Burnished: | No |
| Dynamically Balanced: | No |
Rotor Hats
| Hat – Part No: | 170-10782 |
| Type: | Drag Hat – Shallow Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1.590 |
| Bolt Circle 1: | 5 x 4.75 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter – BC 1: | 0.520 |
| Stud Diameter – BC 2: | 0.000 |
| Stud Diameter – BC 3: | 0.000 |
