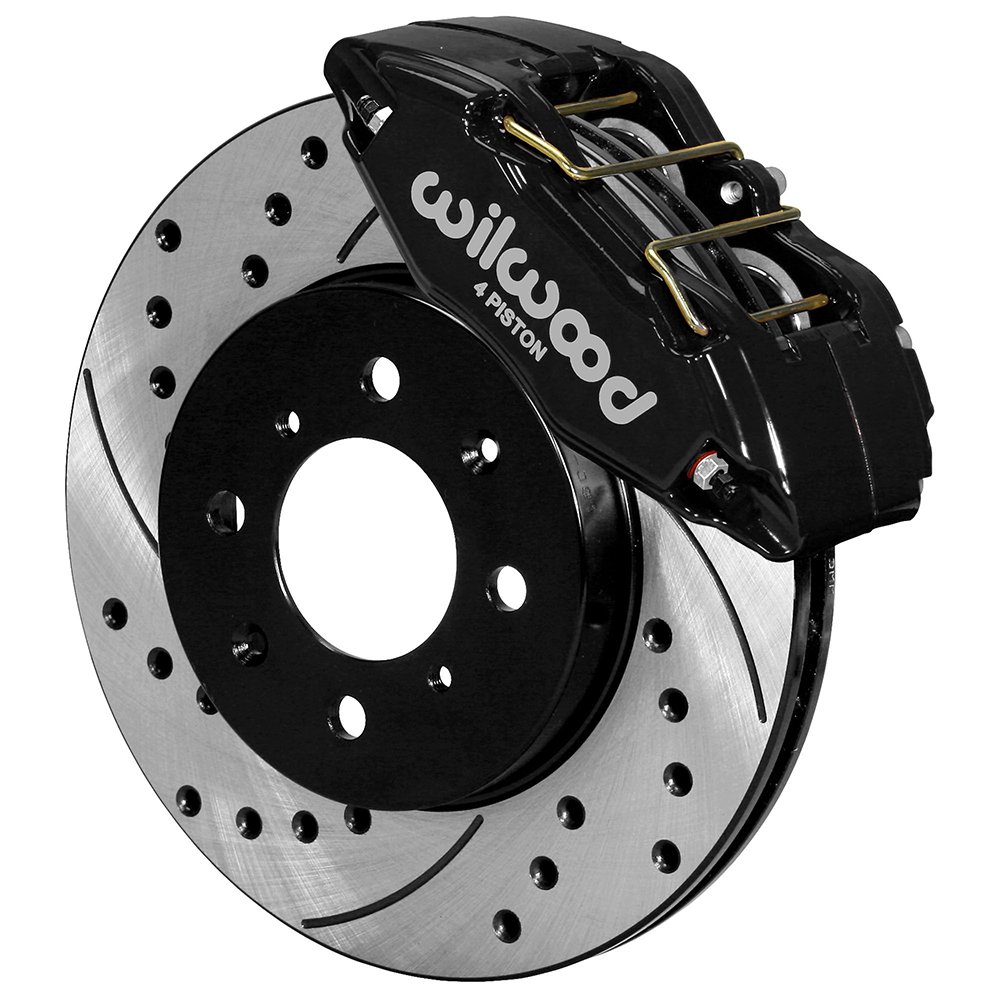

Wilwood 140-12996 Forged DPHA Front Brake Kit 10.32 Drilled Black for Honda Acura
821,41 €
Forged DPHA Front Caliper and Rotor Kit
Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
Kit Summary
| OE Hub Offset: | .00 |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 – Black Powder Coat |
| Rotor Diameter: | 10.32 |
| Min Wheel Diameter Req’d*: | 15 |
Kit Components & Specifications
Calipers
| Left Hand – Part No: | 120-12949-BK |
| Right Hand – Part No: | 120-12949-BK |
| Type: | Forged DPHA |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.62 |
| Piston Area (In²): | 4.12 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
Rotors
| Left Hand – Part No: | 160-12839-BK |
| Right Hand – Part No: | 160-12838-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 10.32 |
| Width (in): | 0.83 |
| Vane Count: | Vented |
| Design Type: | SRP-BLK |
| Burnished: | No |
| Dynamically Balanced: | No |
Vehicle Compatibility
- Acura Integra 1990-1996 All
- Acura Integra 1997-2001 All, Except Type-R
- Honda Civic 1996-2000 Coupe EX
- Honda Civic 1993-1995 Coupe EX AT
- Honda Civic 1993-1995 Coupe EX Manual
- Honda Civic 1994-1995 Coupe EX w/ Rear Disc
- Honda Civic 1999-2000 Coupe SI
- Honda Civic 2005 DX / HX / VP Models
- Honda Civic 2004-2005 EX / GX / LX
- Honda Civic 2001-2003 EX / GX Models
- Honda Civic 1994-1995 Hatchback SI
- Honda Civic 1990-2000 Sedan EX
- Honda Civic 1992-1995 Sedan EX w/ Rear Disc
- Honda Civic 1996 Sedan LX
- Honda Civic 1994-1995 Sedan LX w/ Auto
- Honda Civic 1994-1995 Sedan LX w/ Manual
- Honda Civic 2002-2003 Si / SiR
- Honda Fit 2007-2013 Base
- Honda Fit 2008-2013 DX
- Honda Fit 2012 DX-A
- Honda Fit 2012-2013 EX
- Honda Fit 2008-2013 LX
- Honda Fit 2007-2013 Sport
