Wilwood 140-17955-R AERO6-DM Direct-Mount Truck Front Brake Kit Red 13.25 for Mercedes Benz Sprinter 2022-2024 AWD
2.308,83 €

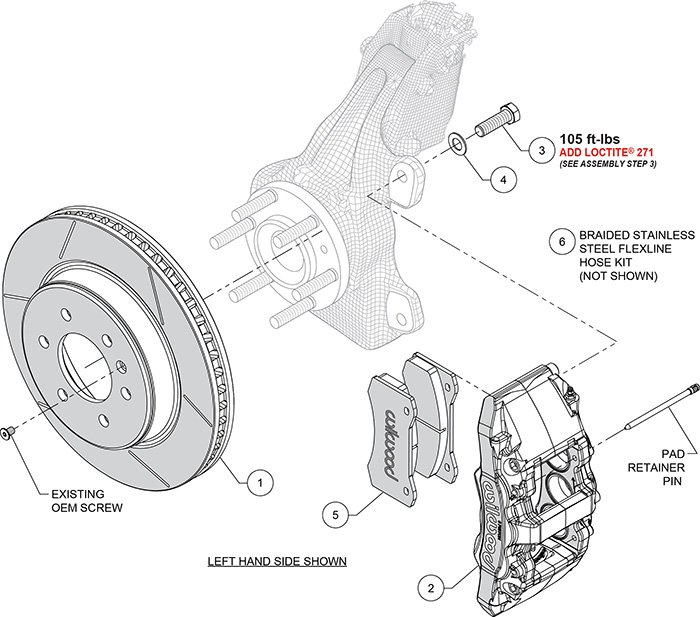

AERO6-DM Direct-Mount Truck Front Brake Kit
AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.25″ to 13.56″ diameter rotors provide maximum cooling for sustained high heat durability.
Kit Summary
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 – Red Powder Coat |
| Rotor Diameter: | 13.25 |
| Min Wheel Diameter Req’d*: | 17 |
Compatible Vehicles
- Mercedes-Benz Sprinter 2500 2022-2024 AWD
Kit Components & Specifications
Calipers
| Left Hand – Part No: | 120-17953-RD |
| Right Hand – Part No: | 120-17952-RD |
| Type: | AERODM |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-Q |
Rotors
| Left Hand – Part No: | 160-17898-GTB |
| Right Hand – Part No: | 160-17898-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 13.25 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | GT-BLK |
| Burnished: | No |
| Dynamically Balanced: | Yes |
AERO6-DM Direct-Mount Truck Front Brake Kit
AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.25″ to 13.56″ diameter rotors provide maximum cooling for sustained high heat durability.
Kit Summary
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 – Red Powder Coat |
| Rotor Diameter: | 13.25 |
| Min Wheel Diameter Req’d*: | 17 |
Compatible Vehicles
- Mercedes-Benz Sprinter 2500 2022-2024 AWD
Kit Components & Specifications
Calipers
| Left Hand – Part No: | 120-17953-RD |
| Right Hand – Part No: | 120-17952-RD |
| Type: | AERODM |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-Q |
Rotors
| Left Hand – Part No: | 160-17898-GTB |
| Right Hand – Part No: | 160-17898-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 13.25 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | GT-BLK |
| Burnished: | No |
| Dynamically Balanced: | Yes |
