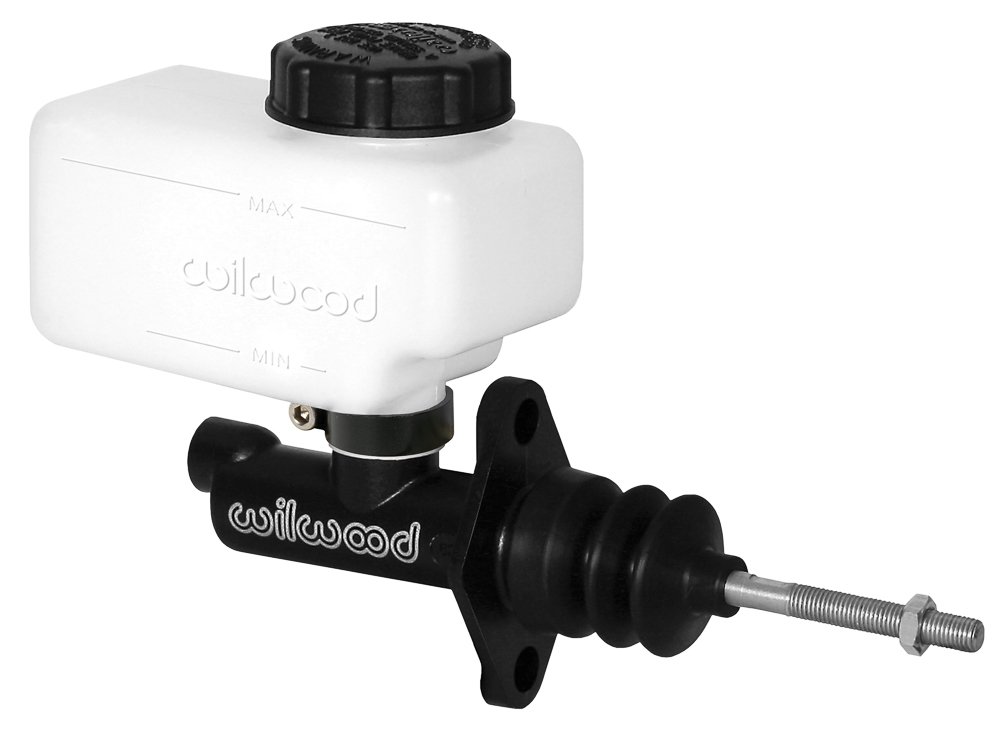

Wilwood 260-13621 Compact Remote Flange Mt Master Cyl-Banjo Outlet
El precio original era: 466,34 €.446,34 €El precio actual es: 446,34 €.
Compact Remote Flange Mt Master Cyl-Banjo Outlet
This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Master Cylinder Dimensions
| Bore Size | 7/8″ |
| Area (in²) | 0.600 |
| Stroke | 1.12 |
| Volume (cu in) | 0.67 |
Master Cylinder Description
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Black E-coat |
Reservoir
| Res Type | Remote |
| Res Size (oz) | 10.0 or 7.0 |
| Res Size(cu in) | 18.0 or 12.6 |
| Rate |
Additional Dimensions
| Overall Length(in) | 7.80″ |
| Flange to End Length (in) | 3.37″ |
| Inlet Size (in) | .87″ or 11/16-20 |
| Inlet Fit (in) | 1/4″ Hose |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | |
| Outlet Size 2 (in) | |
| Outlet Fit 2 (in) |
Compact Remote Flange Mt Master Cyl-Banjo Outlet
This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
Master Cylinder Dimensions
| Bore Size | 7/8″ |
| Area (in²) | 0.600 |
| Stroke | 1.12 |
| Volume (cu in) | 0.67 |
Master Cylinder Description
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Black E-coat |
Reservoir
| Res Type | Remote |
| Res Size (oz) | 10.0 or 7.0 |
| Res Size(cu in) | 18.0 or 12.6 |
| Rate |
Additional Dimensions
| Overall Length(in) | 7.80″ |
| Flange to End Length (in) | 3.37″ |
| Inlet Size (in) | .87″ or 11/16-20 |
| Inlet Fit (in) | 1/4″ Hose |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | |
| Outlet Size 2 (in) | |
| Outlet Fit 2 (in) |
