Wilwood 340-13833 Pedal Assembly Brake Or Clutch Type Floor Mount Aluminum
El precio original era: 506,99 €.486,99 €El precio actual es: 486,99 €.
Floor Mount Clutch / Brake Pedal – Product Description
This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size
Caution: To use this pedal with a horizontal mount flange tandem outlet master cylinder, order adapter kit part number 250-3677.
Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications
Pedal Type:
Material – Aluminum
Finish – Black E-coat
Pedal Description:
Mount Loc – Floor
Mount Facing – Forward
Balance Bar – No
Mount Length (in) – 10.42
Pedal Ratio & Length:
Pedal 1 Ratio – 6.0 to 1
Pedal 1 Length (in) – 9.63

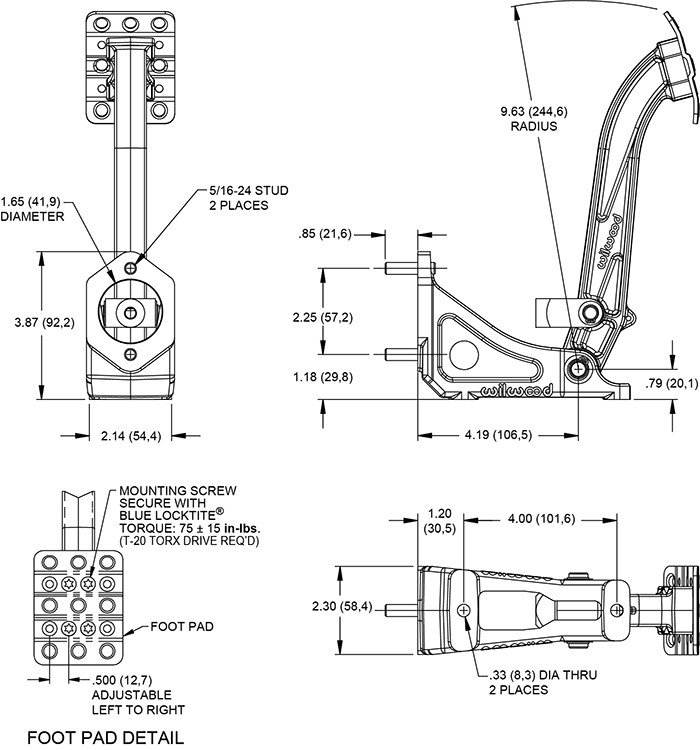

Additional Pedal Dimensions
Mount Length (in) – 10.42
Pedal 1 Length (in) – 9.63
Floor Mount Clutch / Brake Pedal – Product Description
This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size
Caution: To use this pedal with a horizontal mount flange tandem outlet master cylinder, order adapter kit part number 250-3677.
Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications
Pedal Type:
Material – Aluminum
Finish – Black E-coat
Pedal Description:
Mount Loc – Floor
Mount Facing – Forward
Balance Bar – No
Mount Length (in) – 10.42
Pedal Ratio & Length:
Pedal 1 Ratio – 6.0 to 1
Pedal 1 Length (in) – 9.63
Additional Pedal Dimensions
Mount Length (in) – 10.42
Pedal 1 Length (in) – 9.63
